Louisville LOU FE3220

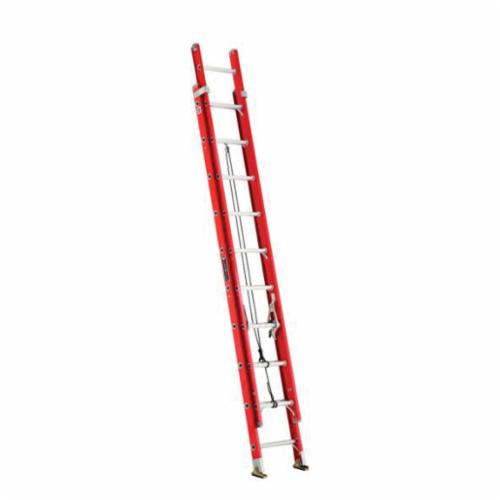

Louisville FE3220 D-Rung Type IA Extension Ladder, 20 ft OAL, ANSI Code: A14.5, 300 lb Load, Fiberglass, 12 in Adjustable Increments
Invoice description:
Ladder 20' Fiberglass Ex T
UPC: 728865200068
UNSPSC:
30191501
Manufacturer PN: FE3220
$434.00 EA
Factory OrderEstimated to ship in 7 days
Louisville Extension Ladder, D-Rung Type IA, Series: FE3200, 20 ft Overall Length, ANSI Code: A14.5, 300 lb Load, Fiberglass, 17 ft Maximum Working Length, 10 ft Section Length, 12 in Adjustable Increments, 17-1/16 in Base x 16-1/16 in Fly Outside Shoe Base Width, Non-Conductive Rail, Swivel Shoe
Features
- Quick latch, steel swivel safety shoe with metal shield
- Outside slide guides
- Mar-resistant rail end caps
- 6-1/4 in step height
- Actual cubic ft 8.600 cu-ft
- 14-11/16 in base x 13-11/16 in fly inside width
- Rail depth is 3-1/4 in
Specifications
Adjustable Increments12 in
ANSI CodeA14.5
Load Capacity300 lb
MaterialFiberglass
Maximum Working Length17 ft
Outside Shoe Base Width17-1/16 in Base x 16-1/16 in Fly
Overall Length20 ft
Rail TypeNon-Conductive
Section Length10 ft
SeriesFE3200
Shoe TypeSwivel
TypeD-Rung Type IA
Additional Information
Standards/ApprovalCSA Certified|ANSI A14.5|OSHA Standard
Country of OriginUS
