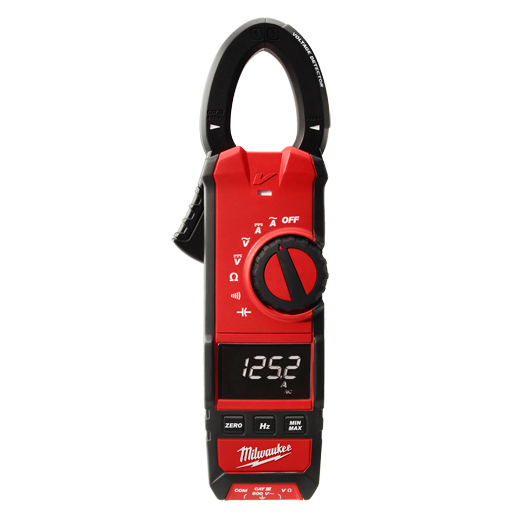

Milwaukee MILW 2237-20

Milwaukee Clamp Meter, 600 A, 600 VAC/VDC Electrical Rating, 6 kOhm Resistance, 1 Hz to 10 kHz Frequency, 1.3 in Jaw, High Contrast White on Black LCD Display, +/-2% +/-5 Digits AC Current Accuracy, +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 9-1/2 in L Dimensions

• Features

• True-RMS for accurate measurement in all applications
• Thin jaw profile for easier wire measurement in panels or in bundles
• AC current range - 0 to 600 A with accuracy of (+/- 2% riding +/- 5 digit) at 50/60 Hz, peak 1500 A with accuracy of (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz, CF equals to 2.5 at 600 A, add 2% at CF> 2 , CF equals 3 at 500 A, <=5 A, add 3 digit, 0 to 600 A with accuracy of (+/- 1.5% riding +/- 5 digit) at 50/60 Hz and (+/- 3.5% riding +/- 5 digit) at 40 to 400 Hz
• Resistance range - 600 Ohm/6 kOhm with accuracy (+/-1%rdg+/-5dgt)
• AC voltage range - 0 to 600 V with accuracy of (+/-1.5% riding +/-4 digit) at 50/60 Hz and (+/-3.5% riding+/-5digit) at 40 to 400 Hz
• DC voltage range - 60/600 V with accuracy of +/-(1% riding +/-3 digits)
• 600 uA DC for flame rectification
• High contrast, white on black display with backlight for easy reading
• Rugged 26 ga galvanized steel construction housing
• Alkaline battery, peak hold type, dial switch type, capacitance

Specifications

Additional Information

Documents

• Full Engineering Drawing
