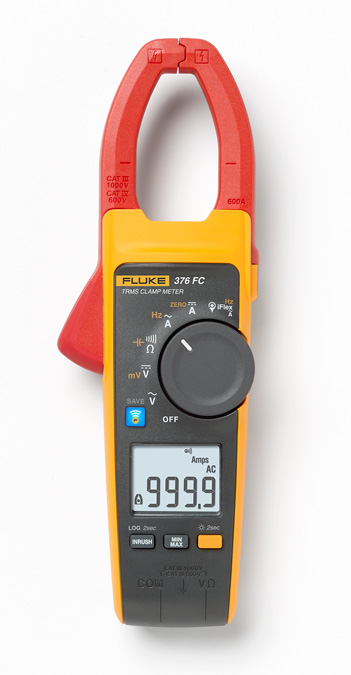

Fluke FLUKE 376 FC

Fluke 376FC True RMS AC/DC Clamp Meter, 1000 A/60000 Ohm, 60 kOhm, 5 to 500 Hz, 34 mm Jaw, LCD Display

Invoice description: Meter Clamp True-rms Ac/ Dc W/iflex 1000amp

UPC: 959697983960
UNSPSC: 41113637
Manufacturer PN: 376FC
$1,033.28 EA
Factory Order
Estimated to ship in 8 days
QTY:


Fluke True RMS AC/DC Clamp Meter, 1000 A/60000 Ohm Electrical Rating, 60 kOhm Resistance, 5 to 500 Hz Frequency, 34 mm Jaw, 6000 Count, LCD Display, 10 to 100 Hz AC Current Accuracy, 20 to 500 Hz Voltage Accuracy, Safety Rating: CAT III 1000 V/CAT IV 600 V, (2) AA NEDA 15A IEC LR6 Batteries Power Source, -10 to 50 deg C Operating, 249 mm L x 85 mm W x 45 mm H Dimensions

  • Features

  • Connect your meter to your smartphone with Fluke connect measurements
  • Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
  • Record results directly to your phone and the cloud
  • Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
  • Create and share reports from the field via email, or converse in real-time with ShareLive video calls

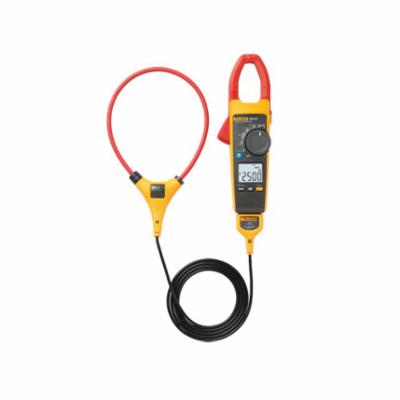

  • iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces
  • TPAK magnetic hanging strap
  • Integrated VFD low pass filter for accurate motor drive measurements
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Soft carrying case

Specifications

AC Current Accuracy10 to 100 Hz
Counts6000
Dimensions249 mm L x 85 mm W x 45 mm H
Display TypeLCD
Electrical Ratings1000 A/60000 Ohm
Frequency Rating5 to 500 Hz
Jaw Capacity34 mm
Operating Temperature-10 to 50 deg C
Power Source(2) AA NEDA 15A IEC LR6 Batteries
Resistance60 kOhm
Safety RatingCAT III 1000 V/CAT IV 600 V
Voltage Accuracy20 to 500 Hz

Additional Information

Includes(2) AA Alkaline Batteries, 18 in iFlex Flexible Current Probe, TPAK Magnetic Hanging Strap, Soft Carrying Case, TL75 Test Leads, Coated Instruction Card and Safety Information Sheet
Warranty3 Years
Standards/ApprovalCSA Certified|CE Certified
Country of OriginCN
