YG-1 YG1 T2443C

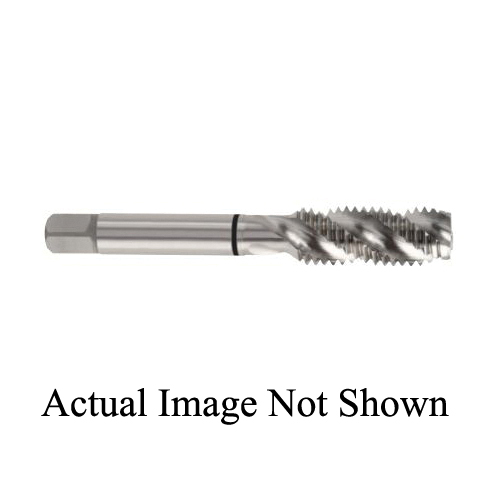

YG-1 T2443C T2-C Combo Multi-Purpose Single End Spiral Flute Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiCN Coated, HSS-EX
Invoice description:
5/16 -18 3 Flt Spiral Fltd Combo Tap
Factory Order
YG-1 Spiral Flute Tap, Combo Multi-Purpose Single End, Series: T2-C, Measurement System: Imperial, UNC, 5/16-18, Semi-Bottoming Chamfer, 3 Flutes, HSS-EX, TiCN Coated, Right Hand Cutting, 0.472 in Thread Length, 2.72 in Overall Length, 0.318 in Shank Dia, 2.248 in Shank Length, Right Hand Flute Direction, H3 Thread Limit, Steel and Stainless Steel Material Application
Features
- Reduces tap breakage, ensures accurate thread depth
- Eliminates loose threads due to tap overfeeding
- Improves thread quality and chip evacuation
- Eliminates "bird nests" around tap shank
Specifications
ApplicationFor multi-purpose
Chamfer TypeSemi-Bottoming
Cutting DirectionRight Hand
Finish/CoatingTiCN Coated
Flute DirectionRight Hand
MaterialHSS-EX
Material ApplicationSteel and Stainless Steel
Measurement SystemImperial
Number of Flutes3
Overall Length2.72 in
SeriesT2-C
Shank Diameter0.318 in
Shank Length2.248 in
Thread Length0.472 in
Thread LimitH3
Thread Size5/16-18
Thread StandardUNC
TypeCombo Multi-Purpose Single End
Additional Information
Standards/ApprovalANSI Specified
