Proto® PRO J6006CXCERT

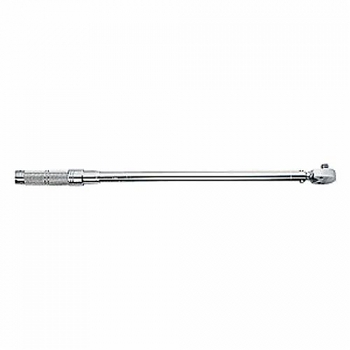

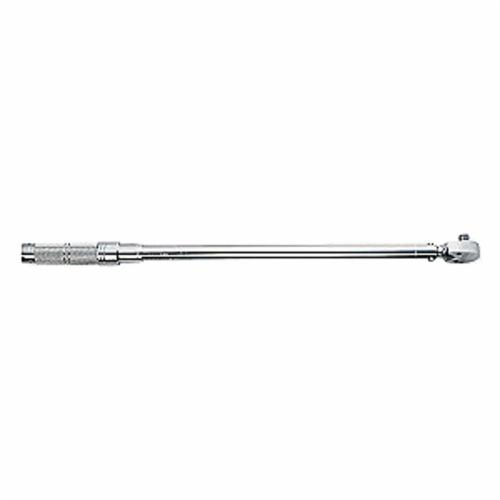

Proto® J6006CXCERT CXCERT Micrometer Torque Wrench, 3/8 in Drive, 16 to 80 ft-lb, Ratcheting Head, 0.5 ft-lb Graduation, 15-1/2 in OAL, ASME B107.14, ASME B107.300-2010, TO33K6-4-2193-1

UPC: 662679081003
UNSPSC: 27111715
Manufacturer PN: J6006CXCERT
$329.80 EA
Factory Order
Estimated to ship in 11 days
QTY:


Proto® Micrometer Torque Wrench, Series: CXCERT, 3/8 in Drive, 16 to 80 ft-lb, Head Ratcheting, Graduations: 0.5 ft-lb, 15-1/2 in Overall Length, CW/CCW Rotation, +/-3% CW, +/-6% CCW Accuracy, Audible Click Indicator, Specifications Met: ASME B107.300-2010, TO33K6-4-2193-1, Steel, Full Polished

  • Features

  • Calibrated to +/-4% clockwise direction and +/-6% counter clockwise direction
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • Certification documents traceable to NIST(national institute of standards and technology)
  • This Proto® torque wrench is made from high grade steel for strength and durability
  • Positive locking mechanism to dial and lock in desired torque
  • Thin head design to allow access in tight areas
  • Calibrated to +/-3% in clockwise direction and +/-6% in counter clockwise direction
  • For strength and durability

Specifications

ApplicationMilitary and Aerospace Applications
Series CXCERT
Drive Size 3/8 in
Torque Range 16 to 80 ft-lb
Head Type Ratcheting
Graduations 0.5 ft-lb
Overall Length 15-1/2 in
Rotation Type CW/CCW
Accuracy +/-3% CW, +/-6% CCW
