Proto PRO J6012C

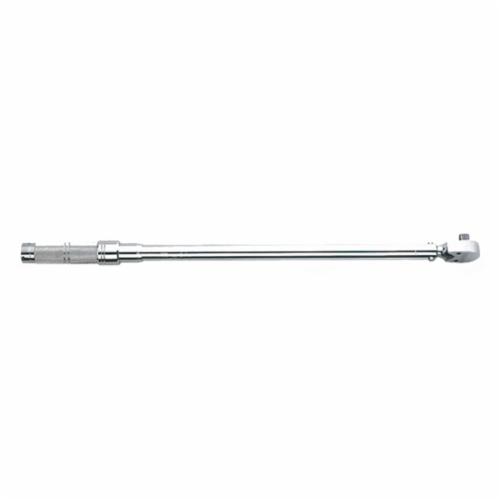

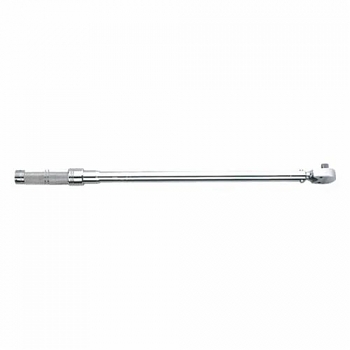

Proto J6012C C Series Micrometer Torque Wrench, 3/8 in Drive, 20 to 100 ft-lb, Ratcheting Head, 0.5 ft-lb Graduation, 17 in OAL, ASME B107.14M
Invoice description:
Wrench Torque 3/8 Dr 20- 100 20-100 Ft Lb
In stock
(6)
Proto Micrometer Torque Wrench, Series: Modle C Series, 3/8 in Drive, 20 to 100 ft-lb, Ratcheting, Graduations: 0.5 ft-lb, 17 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap, ASME B107.14M, Steel, Full Polished
Features
- Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- This Proto torque wrench is made from high grade steel for strength and durability
- Positive locking mechanism to dial and lock in desired torque
- Thin head design to allow access in tight areas
- Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
- For strength and durability
Specifications
ApplicationMilitary and Aerospace Applications
Accuracy+/-3% CW, +/-6% CCW
Drive Size3/8 in
FinishFull Polished
Graduations0.5 ft-lb
Handle TypeKnurled/Screw-On End Cap
Head TypeRatcheting
Indicator TypeAudible Click
MaterialSteel
Minimum Number of Cycles50000
Overall Length17 in
Rotation TypeCW/CCW
SeriesC Series
SettingAutomatic Reset
Specifications MetASME B107.14M
Torque Range20 to 100 ft-lb
Additional Information
Standards/ApprovalASME B107.14
Country of OriginUS
