Proto PRO J6014CXCERT

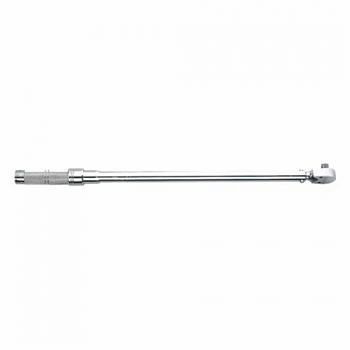

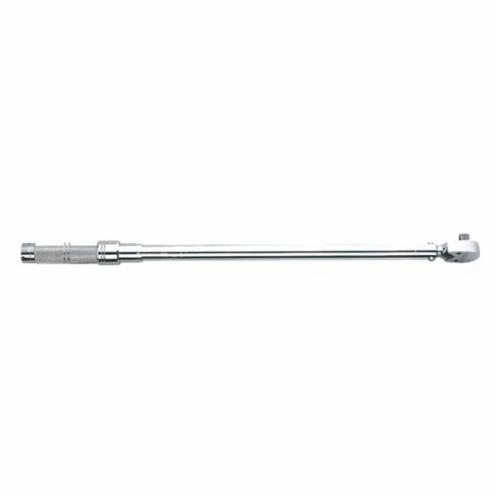

Proto J6014CXCERT CXCERT Micrometer Torque Wrench, 1/2 in Drive, 50 to 250 ft-lb, Ratcheting Head, 1 ft-lb Graduation, 27-1/8 in OAL, ASME B107.14
Invoice description:
Wrench Torque 1/2"dr 50- 250 Ftlb With Nist Cert National Institute Of Technology Cert
In stock
(4)
Proto Micrometer Torque Wrench, Series: Modle CXCERT, 1/2 in Drive, 50 to 250 ft-lb, Ratcheting, Graduations: 1 ft-lb, 27-1/8 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Audible Click Indicator, ASME B107.14, Steel, Full Polished
Features
- Calibrated to +/-3% in clockwise direction and +/-6% counter clockwise direction
- Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
- Certification documents traceable to NIST(National Institute of Standards and technology)
- This Proto torque wrench is made from high grade steel for strength and durability
- Positive locking mechanism to dial and lock in desired torque
- Thin head design to allow access in tight areas
- Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
- For strength and durability
Specifications
ApplicationMilitary and Aerospace Applications
Accuracy+/-3% CW, +/-6% CCW
Drive Size1/2 in
FinishFull Polished
Graduations1 ft-lb
Head TypeRatcheting
Indicator TypeAudible Click
MaterialSteel
Overall Length27-1/8 in
Rotation TypeCW/CCW
SeriesCXCERT
Specifications MetASME B107.14
Torque Range50 to 250 ft-lb
Additional Information
Standards/ApprovalASME B107.14
Country of OriginUS
