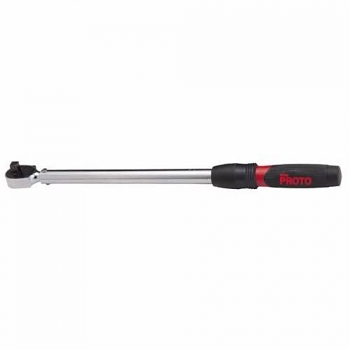

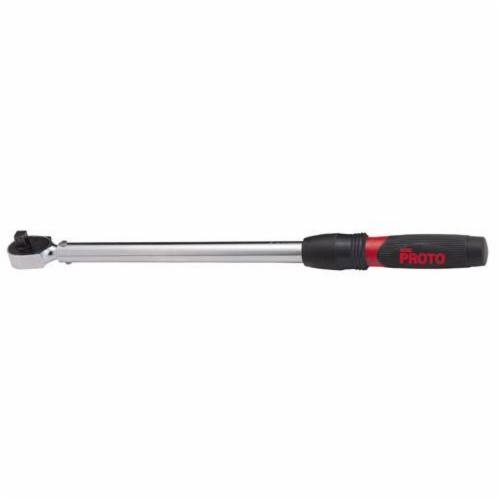

Proto PRO J6018AB

Proto J6018AB Micrometer Torque Wrench, 3/4 in Drive, 60 to 300 ft-lb, Ratcheting Head, 2 ft-lb Graduation, 32 in OAL, ASME B107.14M

Invoice description: Wrench Torque 3/4 Dr 60- 300 50-300 Ft Lb (6018a)

UPC: 662679134570
UNSPSC: 27111715
Manufacturer PN: J6018AB
$855.02 EA
Factory Order
Estimated to ship in 7 days
QTY:


Proto Micrometer Torque Wrench, 3/4 in Drive, 60 to 300 ft-lb, Ratcheting, Graduations: 2 ft-lb, 32 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 5000 Cycles Minimum, Audible Click Indicator, Knurled Grip, Specifications Met: ASME B107.14M, Steel, Full Polished

  • Features

  • Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • 45-tooth gear/floating pawl design for small 6.8 in arc swing
  • 13% smaller head for access in tight work areas
  • Reversing lever designed for quick, 1-hand operation
  • Calibrated Plus or Minus 2%

Specifications

ApplicationMilitary and Aerospace Applications
Accuracy+/-3% CW, +/-6% CCW
Drive Size3/4 in
FinishFull Polished
Graduations2 ft-lb
Handle TypeKnurled Grip
Head TypeRatcheting
Indicator TypeAudible Click
MaterialSteel
Minimum Number of Cycles5000
Overall Length32 in
Rotation TypeCW/CCW
SettingAutomatic Reset
Specifications MetASME B107.14M
Torque Range60 to 300 ft-lb

Additional Information

Standards/ApprovalASME B107.14
Country of OriginUS
