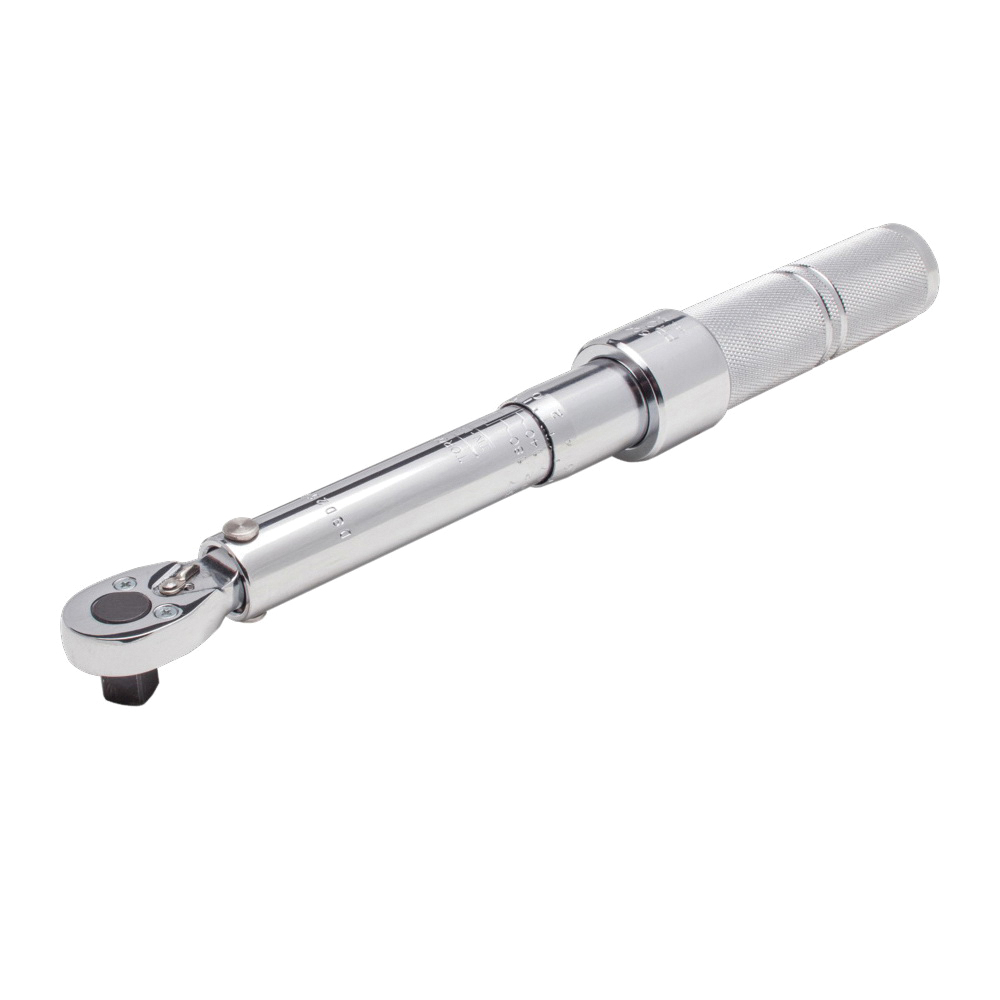

Proto® PRO J6064C

Proto® J6064C C Series Micrometer Torque Wrench, 3/8 in Drive, 40 to 200 in-lb, Ratcheting Head, 1 in-lb Graduation, 11-7/8 in OAL, ASME B107.14M

UPC: 662679136079
UNSPSC: 27111715
Manufacturer PN: J6064C
$252.44 EA
Factory Order
Estimated to ship in 22 days
QTY:


Proto® Micrometer Torque Wrench, Series: Modle C Series, 3/8 in Drive, 40 to 200 in-lb, Ratcheting, Graduations: 1 in-lb, 11-7/8 in Overall Length, CW/CCW, +/-3% CW, +/-6% CCW Accuracy, Setting: Automatic Reset, 50000 Cycles Minimum, Audible Click Indicator, Knurled/Screw-On End Cap, ASME B107.14M, Steel, Full Polished

  • Features

  • Calibrated to +/-4% in clockwise direction and +/-6% counter clockwise direction at 20% to 100% of full scale
  • Calibration is accomplished by mechanical loading each wrench in a horizontal position and performing a three click test at 20%, 60% and 100% of maximum instrument capacity
  • This Proto® torque wrench is made from high grade steel for strength and durability
  • Thin head design to allow access in tight areas
  • Calibrated To Plus or Minus 3% In Clockwise Direction And Plus Or Minus 6% In Counter Clockwise Direction
  • For strength and durability

Specifications

ApplicationMilitary and Aerospace Applications
Series C Series
Drive Size 3/8 in
Torque Range 40 to 200 in-lb
Head Type Ratcheting
Graduations 1 in-lb
Overall Length 11-7/8 in
Rotation Type CW/CCW
Accuracy +/-3% CW, +/-6% CCW
Setting Automatic Reset
