SGS SGS 57008

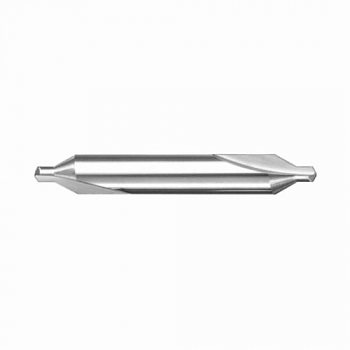

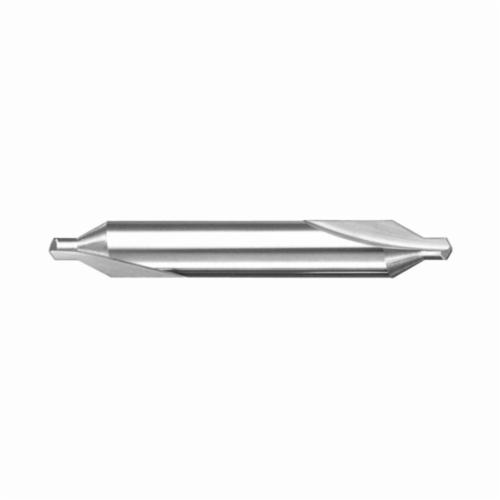

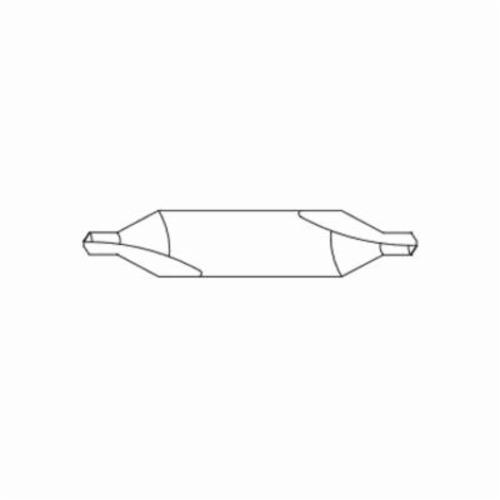

SGS 57008 301 Double End General Purpose Combined Drill and Countersink, #2 Drill - Wire, 0.221 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Micrograin Solid Carbide, Bright
Invoice description:
Bit Ser 301 C Drill 3/16
UPC: 691781570082
UNSPSC:
23241605
Manufacturer PN: 57008
$37.98 EA
Factory OrderEstimated to ship in 7 days
SGS Combined Drill and Countersink, Double End General Purpose, Series: 301, #2 Drill Size - Wire, 0.221 in Drill Size - Decimal Inch, 5/64 in Point Dia, 3/16 in Body Dia, 1-7/8 in Overall Length, 2 Flutes, Straight Flute, 0.2 in Flute Length, 3/16 in Shank, HA Common Shank, 118 deg Point, Plain Point, 60 deg Included Angle, Right Hand Cutting, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, Bright, Applicable Materials: Cast Iron, High Temperature Alloy, Non-Ferrous Metals, Plastic and Composites, Steel, Stainless Steel and Titanium
Specifications
ApplicationAerospace, Automotive, Casting, Foundries, General Engineering, Medical, Mold and Die and Power Generation
Applicable MaterialsCast Iron, High Temperature Alloy, Non-Ferrous Metals, Plastic and Composites, Steel, Stainless Steel and Titanium
Body Diameter3/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Solid Carbide
Drill Size - Decimal Inch0.221 in
Drill Size - Wire#2
FinishBright
Flute Length0.2 in
Flute TypeStraight
Included Angle60 deg
MaterialMicrograin Solid Carbide
Number of Flutes2
Overall Length1-7/8 in
Point Angle118 deg
Point Diameter5/64 in
Point TypePlain
Series301
Shank Size3/16 in
Shank TypeHA Common
TypeDouble End General Purpose
Additional Information
Standards/ApprovalISO 9001
Country of OriginUS
Sds
Rohs
