Simpson Strong-Tie SIMS DIA50

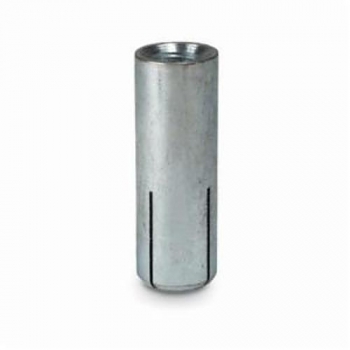

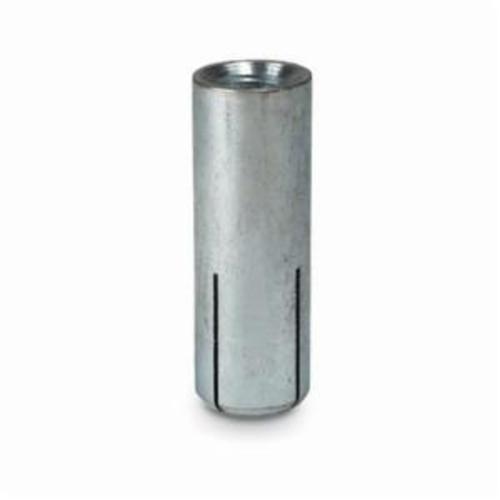

Simpson Strong-Tie DIA50 Threaded Drop-In Anchor, 1/2 in, 5/8 in Drill, Carbon Steel, 2 in D Min Embedment

Invoice description: Anchor Dropin 1/2" 50/bx

UPC: 044315068508
UNSPSC: 31162100
Manufacturer PN: DIA50
$35.54 BX
Factory Order
Estimated to ship in 24 days
QTY:


Simpson Strong-Tie Drop-In Anchor, Threaded, 1/2 in Bolt/Rod, 1/2-13, Carbon Steel, 5/8 in Drill, 2 in Minimum Embedment Depth, 3/4 in Thread Length, UNC, 2 in Overall Length, 1750 lb at 2000 psi/3000/4000 psi for Concrete Shear Strength, 830 lb at 2000 psi, 1178 lb at 3000 psi, 1525 lb at 4000 psi for Concrete Tensile, Zinc Plated

  • Features

  • Lipped edge (DIAS) eliminates need for precisely drilled hole depth
  • Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
  • 2600 to 2700 deg F freezing/melting point
  • Expander plug meets minimum 50000 psi tensile strength
  • Anchor body meets minimum 70000 psi tensile
  • The allowable loads are based on a safety factor of 4
  • The minimum concrete thickness is 1-1/2 times the embedment depth

Specifications

ApplicationFor flush mount applications in solid base materials
Bolt/Rod Size1/2 in
Drill Size5/8 in
FinishZinc Plated
MaterialCarbon Steel
Minimum Embedment Depth2 in
Overall Length2 in
Shear Strength1750 lb at 2000 psi/3000/4000 psi for Concrete
Tensile Strength830 lb at 2000 psi, 1178 lb at 3000 psi, 1525 lb at 4000 psi for Concrete
Thread Length3/4 in
Thread Size1/2-13
Thread TypeUNC
TypeThreaded

Additional Information

Standards/ApprovalOSHA 29 CFR 1910.1000|Federal Specification A-A-55614|Type I|FM 3017082|UL File Ex3605
Country of OriginCN
