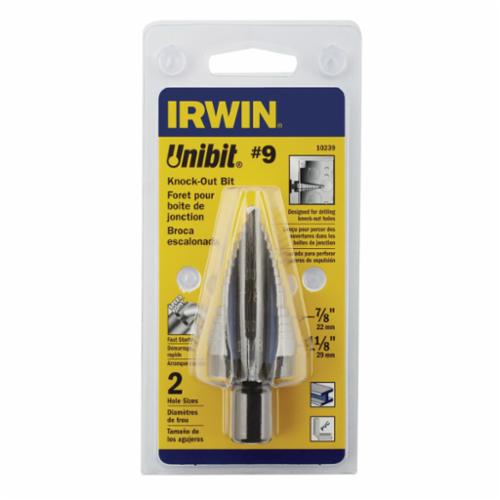

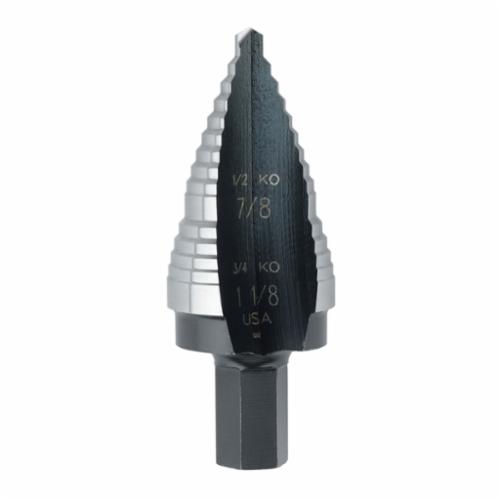

Irwin® Unibit® VG 10239
Irwin® Unibit® 10239 Step Drill Bit, 7/8 in Dia Min Hole, 1-1/8 in Dia Max Hole, 2 Steps, HSS, 2 Hole Sizes, 7/16 in Shank
Irwin® Unibit® Step Drill Bit, Imperial, #9 Letter/Wire, 7/8 in Diameter Minimum Hole, 1-1/8 in Diameter Maximum Hole, 2 Steps, 1/8 in Step Depth, 2 Hole, 1 Flutes, 7/16 in Shank, Hex Shank, Self-Starting SpeedPoint® Point, HSS Cutting Edge, HSS, Bright, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Features
- Single flute cutting edge for greater control through steps
- Hex shank prevents slipping in drill chuck
- Also available with (TiN) coating for longer life
- New speed point tip penetrates faster than previous Unibit® and prevents walking
- Geometry of single flute cutting edge drills true, round holes and provides maximum step control

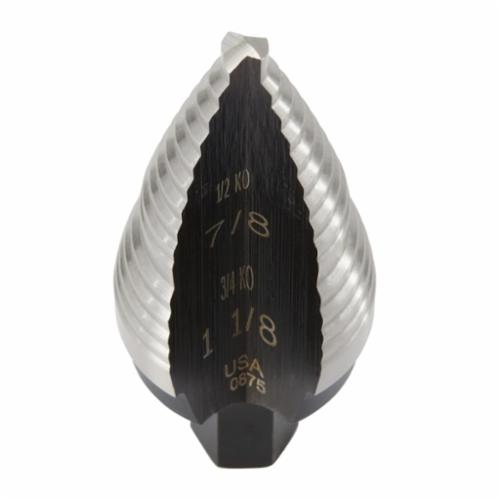

- Laser etched sizes inside flute for easy and permanent hole size identification
Specifications
ApplicationFor drilling holes into thin materials
Drill Diameter Measu Imperial
Letter/Wire Size #9
Minimum Hole Diamete 7/8 in
Maximum Hole Diamete 1-1/8 in
Number of Steps 2
Step Depth 1/8 in
