Coilhose COIL NC0650-500N

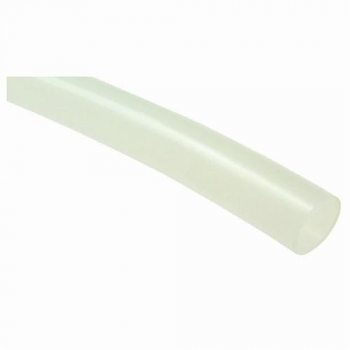

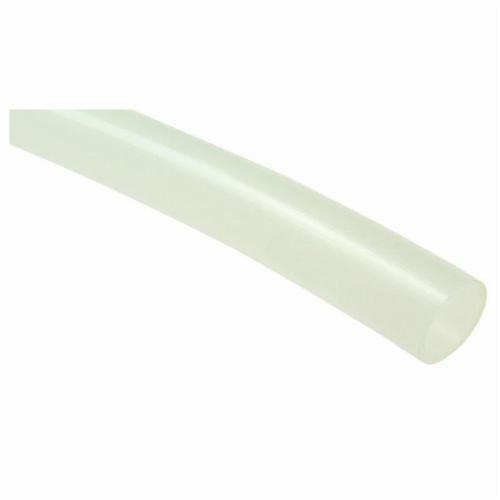

Coilhose NC0650-500N Standard Nylon Tubing, 0.275 in ID x 3/8 in OD x 500 ft L, 0.05 in THK Wall, Domestic

Invoice description: Tubing Nylon 3/8 Odx.275 Id .050 Wall Natural 500

UPC: 029292429559
UNSPSC: 40183000
Manufacturer PN: NC0650-500N
$0.92 FT
Factory Order
Estimated to ship in 8 days
QTY:


Coilhose Nylon Tubing, Standard, Series: NC Series, 0.275 in ID, 3/8 in OD, 500 ft Length, 0.05 in Wall Thickness, 250 psi Working, -60 to 200 deg F, Natural, Domestic

  • Features

  • For applications requiring low density, lightweight toughness, flexibility and chemical resistance
  • Its dimensional stability makes it compatible with Coilock fittings and poly-tube fittings
  • Packaged on reels
  • 28 in hg Vacuum rating
  • 0.002 -0.004 in tolerance
  • 78 Rockwell R hardness
  • UV Stabilized

Specifications

ColorNatural
Domestic/ImportDomestic
Inside Diameter0.275 in
Length500 ft
Outside Diameter3/8 in
SeriesNC Series
Temperature Rating-60 to 200 deg F
TypeStandard
Wall Thickness0.05 in
Working Pressure250 psi

Additional Information

Standards/ApprovalUL 94HB
Country of OriginUS
