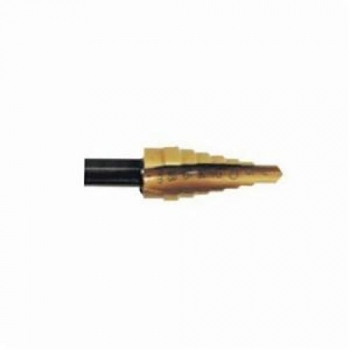

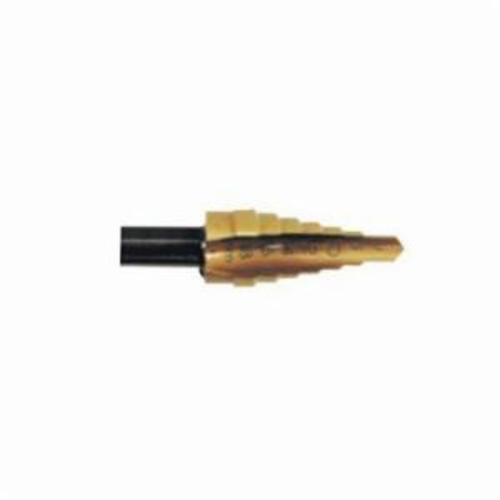

Irwin Unibit IRW 16105

Irwin Unibit 16105 Step Drill Bit, 5 mm Dia Min Hole, 35 mm Dia Max Hole, 13 Steps, 13 Hole Sizes, 7/16 in Shank

Invoice description: 5mt 13 Hole Sizes (5 Mm - 35 Mm), 2-3 Mm Inc

UPC: 038548161051
UNSPSC: 23241606
Manufacturer PN: 16105
$168.92 EA
Factory Order
QTY:


Irwin Unibit, 16105, Step Drill Bit, Metric, #5MT Letter/Wire, 5 mm Diameter Minimum Hole, 35 mm Diameter Maximum Hole, 13 Steps, 2 to 3 mm Step Depth, 13 Hole, 1 Flutes, 13, 7/16 in Shank, 3-Flat Shank, Self-Starting SpeedPoint, HSS Cutting Edge, TiN Coated, Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel

  • Features

  • Single flute cutting edge for greater control through steps
  • 3 flatted shank prevents slipping in drill chuck
  • New speed point tip penetrates faster than previous Unibit and prevents walking
  • Geometry of single flute cutting edge drills true, round holes and provides maximum step control
  • Laser etched sizes inside flute for easy and permanent hole size identification
  • Titanium nitride coating resists heat and friction, extending the cutting edge life up to six times longer than other high speed steel step drill bits
  • SpeedPoint tip for fast starts
  • Hex shaped shank secures easily in drill
  • #1, #2, #10 and #12 sizes have a quick change shank

Specifications

ApplicationFor drilling holes into thin materials
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric
FinishTiN Coated
Hole Sizes Cut13
Letter/Wire Size#5MT
MaterialHSS
Maximum Hole Diameter35 mm
Minimum Hole Diameter5 mm
Number of Flutes1
Number of Hole Sizes13
Number of Steps13
Point TypeSelf-Starting SpeedPoint
Shank Size7/16 in
Shank Type3-Flat
Step Depth2 to 3 mm

Additional Information

WarrantyLimited
Country of OriginUS
