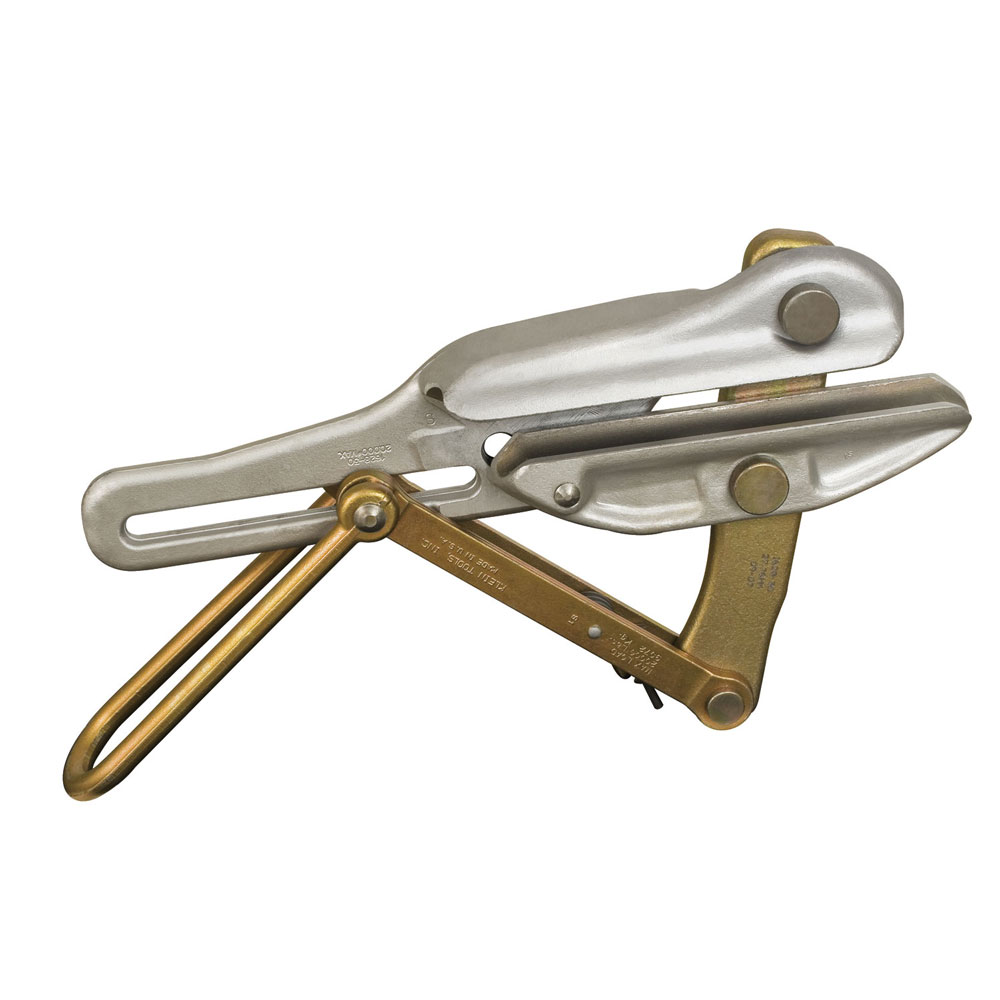

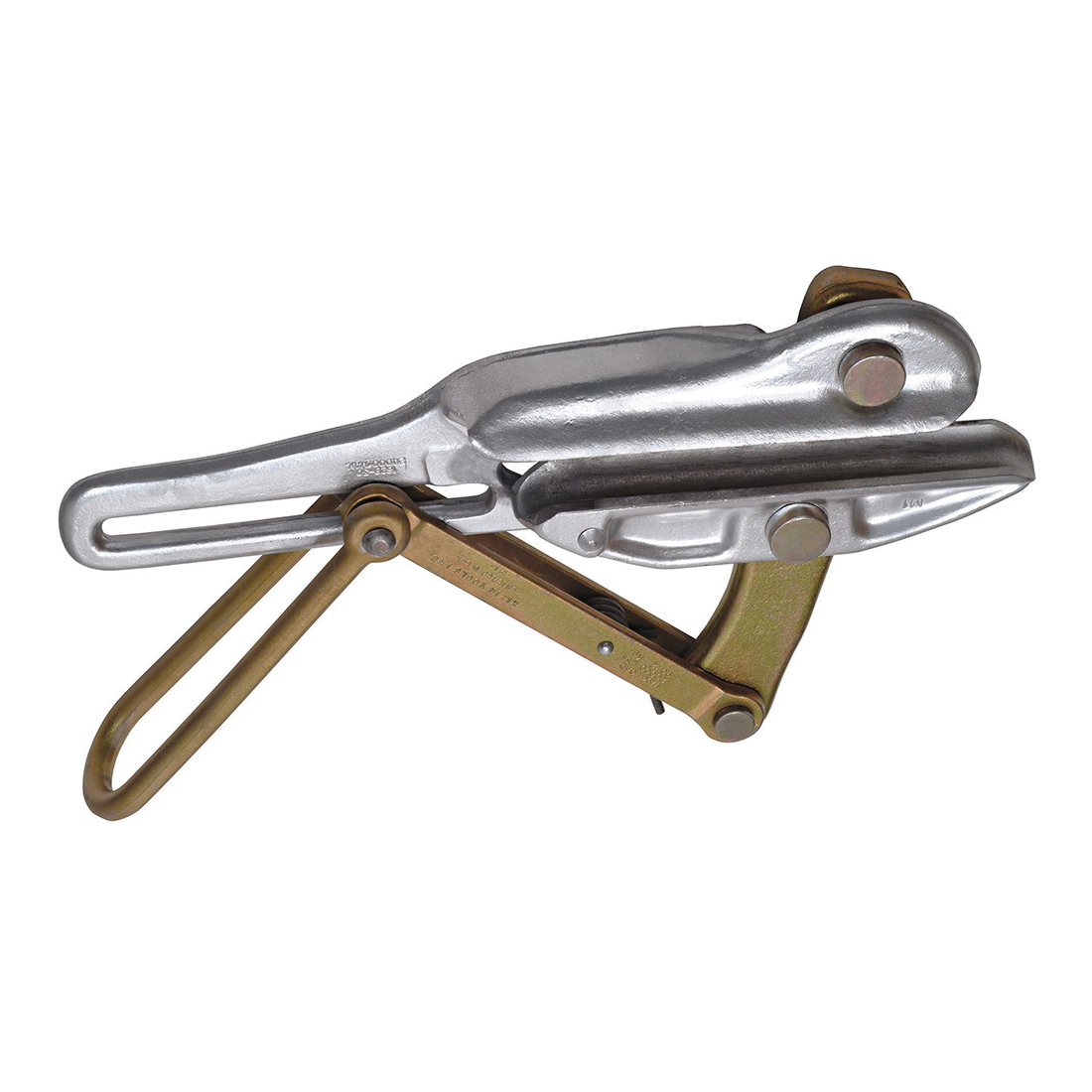

Klein® KLN 1628-30
Klein® Chicago® 1628-30 Round Chicago-Grip Cable Pulling Grip, 0.85 to 1.26 in Dia Cable, 20000 lb Load, Steel
Klein® Chicago® Chicago-Grip Cable Pulling Grip, Round, 0.85 to 1.26 in Dia Cable, AAC/ACSR Cable, 20000 lb Load, Steel
Features
- Designed for hollow conductors and other large diameter cables
- Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage
- Orders must specify exact outside diameter of cables, circular mills with strand combination or manufacturer's code
- Each grip is made for one size cable only
- Maximum safe stringing tension 12500 lb (5670 kg) to minimize conductor damage
- 10-3/4 in L jaw
- 477000 CM ACSR 0.85 in cable capacity
- Drop forged steel
Specifications
ApplicationFor large diameter conductors
Type Round
Cable Size 0.85 to 1.26 in Dia
Cable Type AAC/ACSR
Load Capacity 20000 lb
