Klein® KLN 1628-40

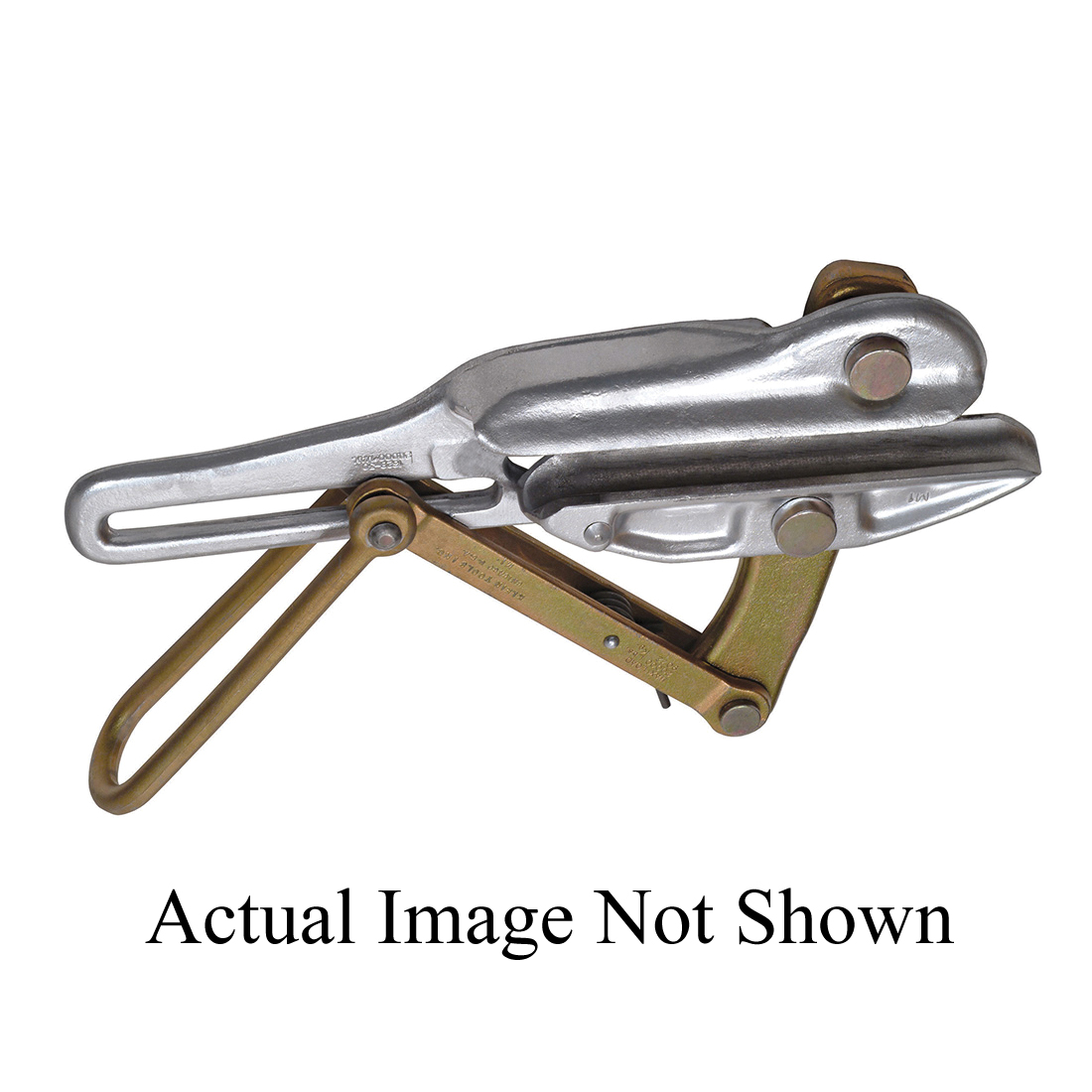

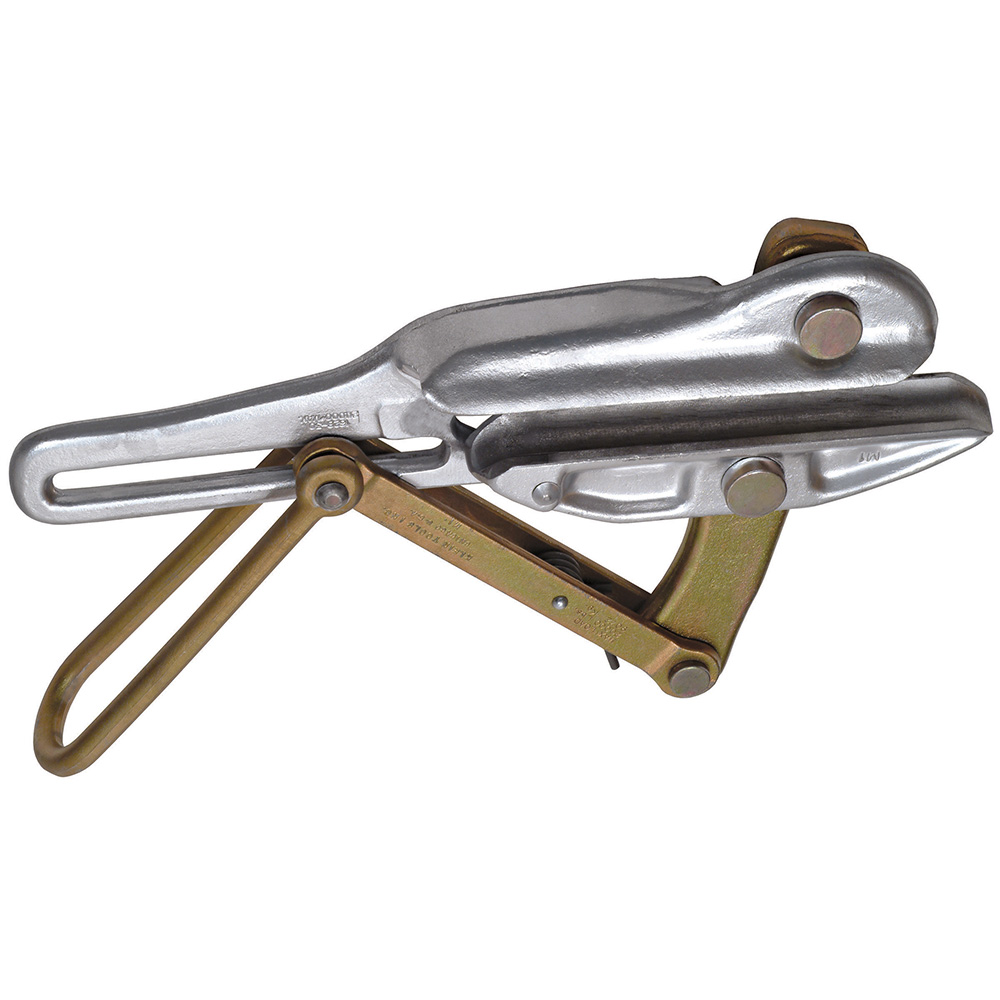

Klein® Chicago® 1628-40 Round Chicago-Grip Cable Pulling Grip, 1.2 to 1.58 in Dia Cable, 25000 lb Load, Steel
Klein® Chicago® Chicago-Grip Cable Pulling Grip, Round, 1.2 to 1.58 in Dia Cable, AAC/ACSR Cable, 25000 lb Load, Steel
Features
- Designed for hollow conductors and other large diameter cables
- Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage
- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code
- Each grip is made for one size cable only
- Maximum safe stringing tension 12500 lb (5670 kg) to minimize conductor damage
- 10-3/4 in jaw length
- 1033500 CM ACSR 1.24 in minimum cable
- Drop forged steel
Specifications
ApplicationFor large diameter conductors
Type Round
Cable Size 1.2 to 1.58 in Dia
Cable Type AAC/ACSR
Load Capacity 25000 lb
