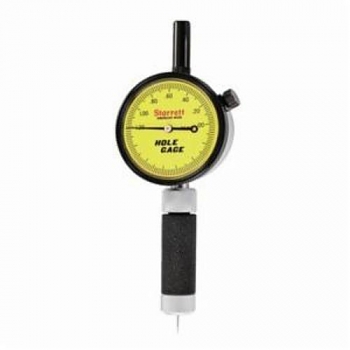

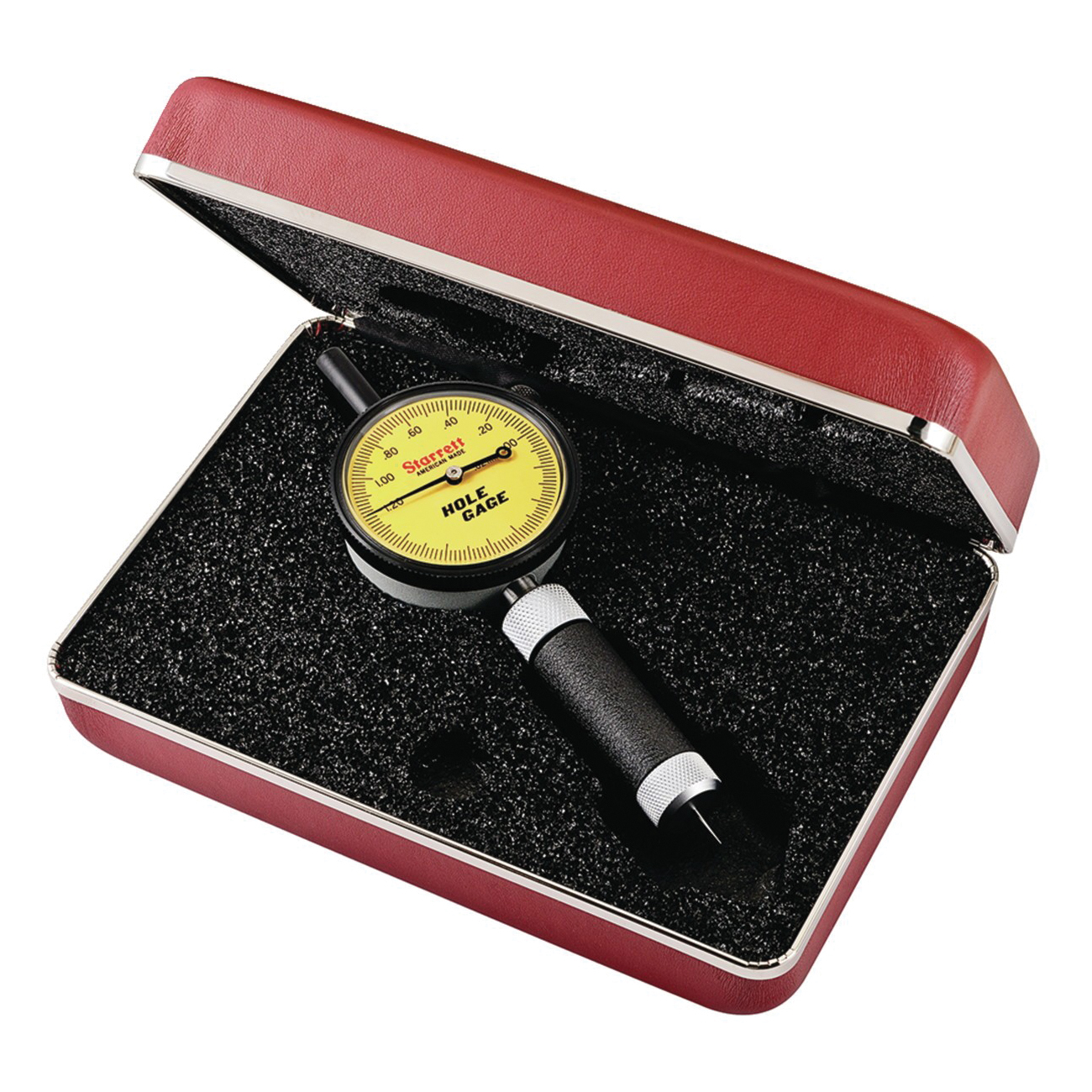

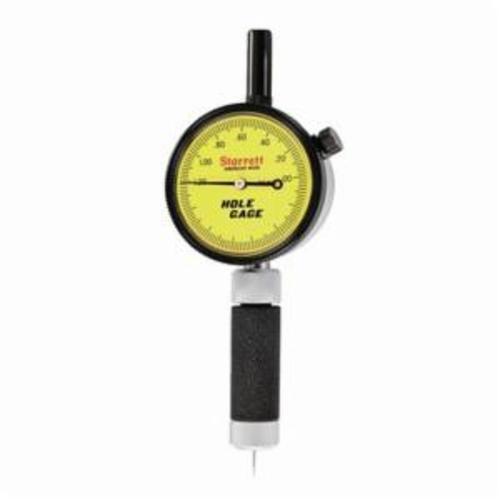

Starrett LSS 690M-2Z

Starrett Dial Hole Gage, Series: 690, 0.75 to 3.3 mm, Graduations: 0.02 mm, 2-19/64 in Dia x 57/64 in H Dial, Yellow Dial, Hardened Tool Steel, 7-7/64 in L

• Features

• All ground surfaces are of hardened tool steel
• Indicators are AGD design
• Fast, accurate and easy to read
• Balanced design for easy one-hand operation
• Can be checked and set with an optional setting master
• Gage can be pressed down on a flat surface and checked so the size should read the same as the set number stamped on the back of the indicator
• Holes that need to be accurately checked must have no chamfers or countersinks
• These hole gages will check hole diameters to 0.001 in and 0.02 mm

Specifications

Documents

• Full Engineering Drawing
