Starrett® LSS 78MXTZ-10

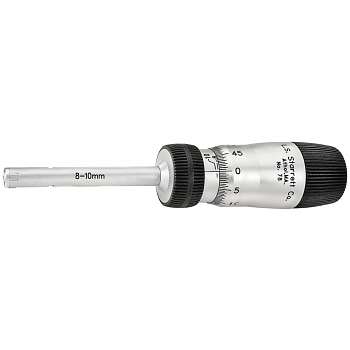

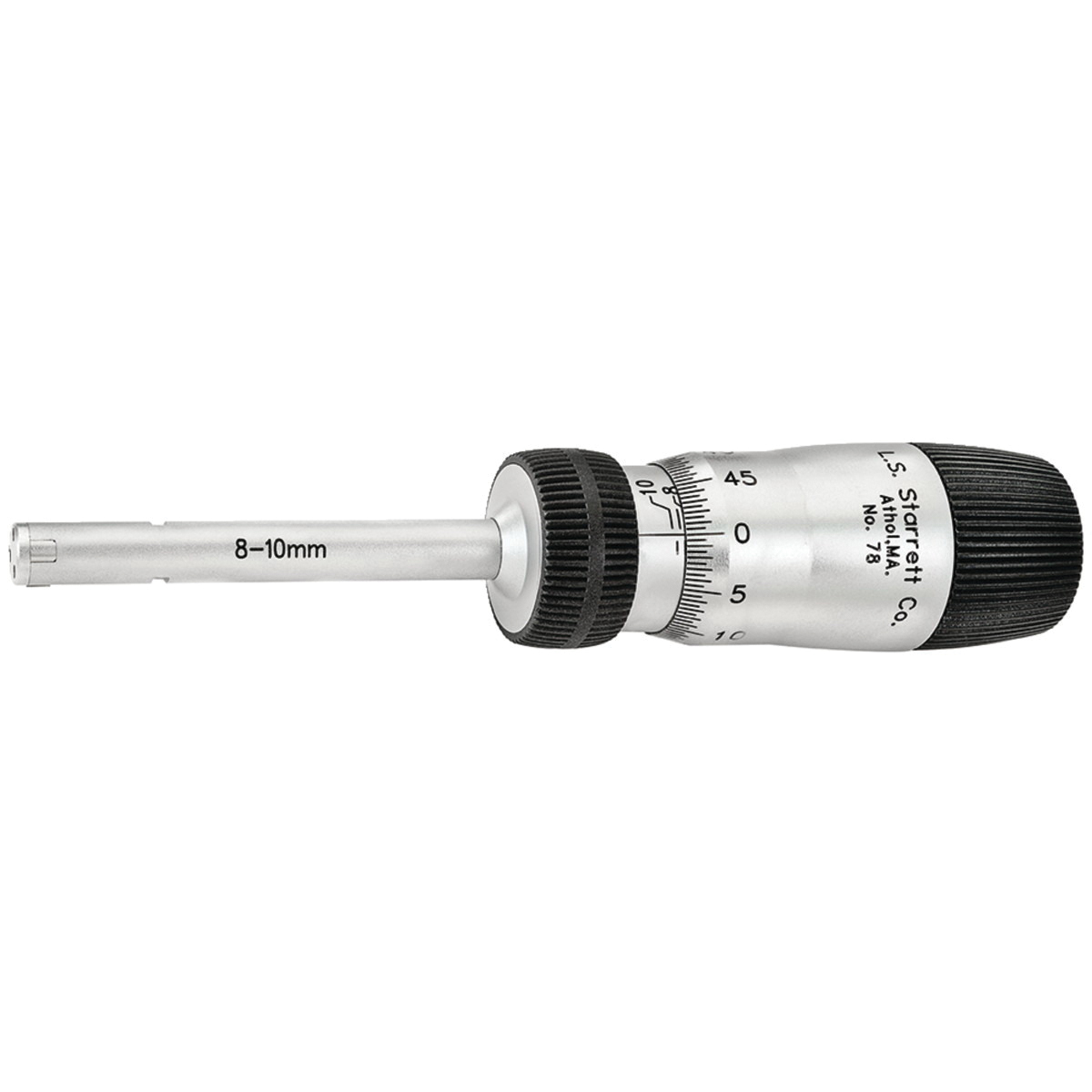

Starrett® 78MXTZ-10 78MXT Global Series® Mechanical Bore Gage, 8 to 10 mm, Graduations: 0.005 mm, 50 mm D Probe, Tungsten Carbide
Factory Order
Starrett® Bore Gage, Mechanical, Series: 78MXT Global Series®, 8 to 10 mm, 0.004 mm Accuracy, Graduations: 0.005 mm, 0.0002 in Resolution, 50 mm Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 8 mm setting ring diameter
- 3-point contact
Specifications
Type Mechanical
Series 78MXT Global Series®
Measuring Range 8 to 10 mm
Accuracy 0.004 mm
Graduations 0.005 mm
Resolution 0.0002 in
Probe Depth 50 mm
