Starrett LSS 78XTZ-375

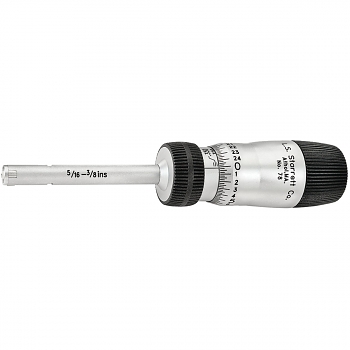

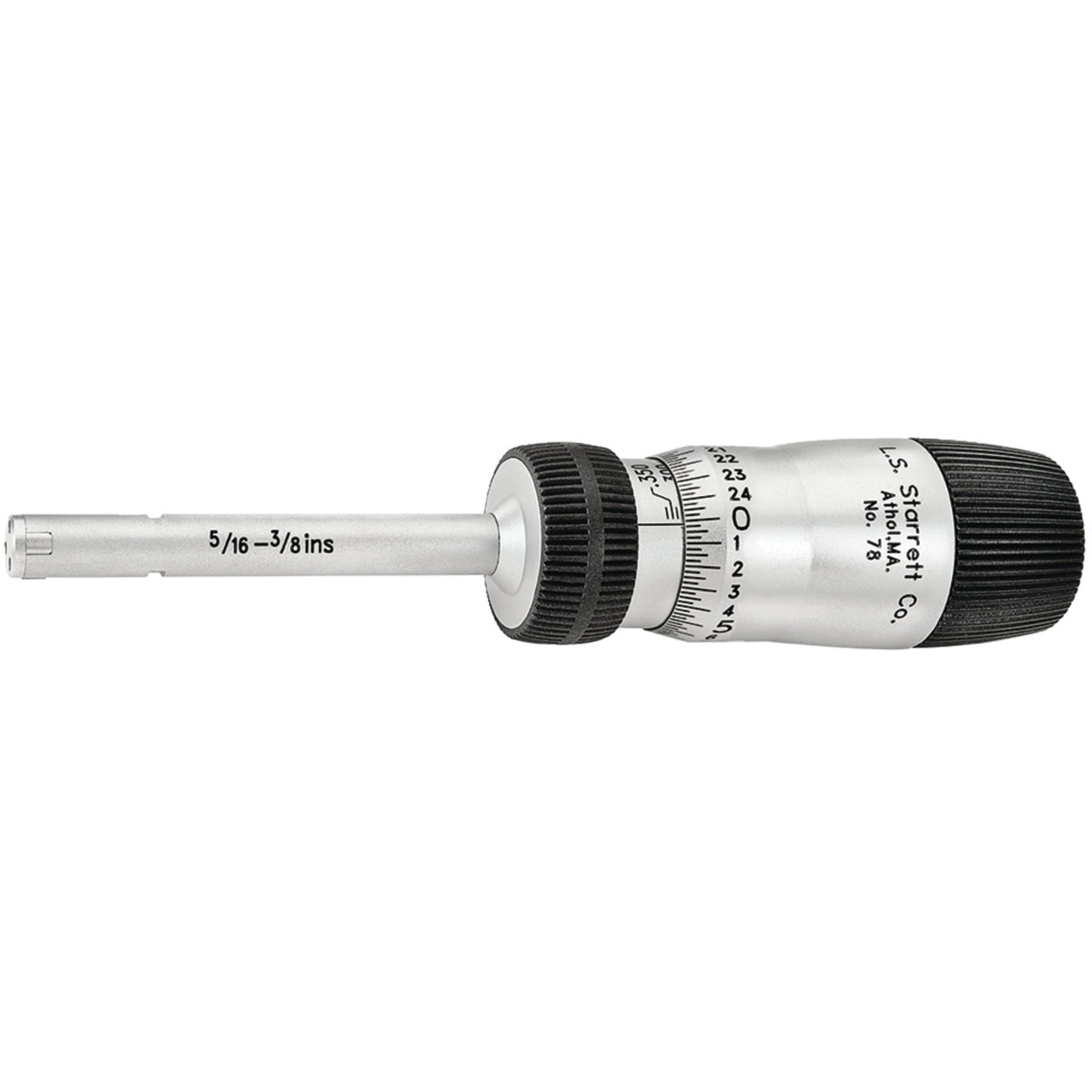

Starrett Bore Gage, Mechanical, Series: 78XT Global Series, 5/16 to 3/8 in, 0.00015 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 2-1/4 in Probe Depth, Tungsten Carbide

• Features

• Depth stop/collar also available for 0.080 in to .250 in (1-6mm) range
• Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
• Wide measurement range without changing anvils
• Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
• Ratchet stop ensures consistent measurements
• Self-centering contacts for true readings
• Blind bore measuring capability above 1/2 in (12.5 mm) diameter
• Extensions available up to 6 in (150mm) for deep hole measuring
• 0.3125 in setting ring diameter
• 3-point contact
