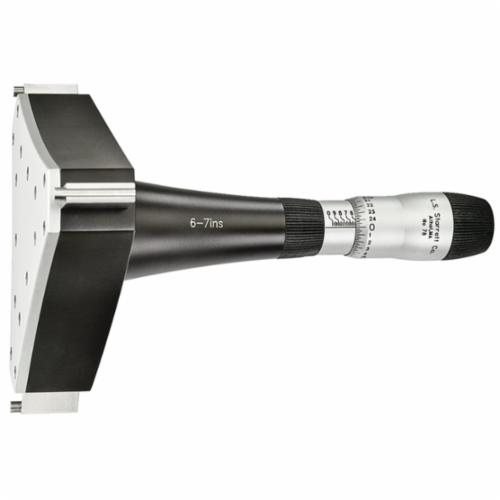

Starrett LSS 78XTZ-7

Starrett 78XTZ-7 78XT Global Series Mechanical Bore Gage, 6 to 7 in, Graduations: 0.00025 in, 4-1/2 in D Probe, Tungsten Carbide

UPC: 049659676815
UNSPSC: 41111600
Manufacturer PN: 78XTZ-7
$4,890.60 EA
Factory Order
QTY:


Starrett Bore Gage, Mechanical, Series: 78XT Global Series, 6 to 7 in, 0.00015 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 4-1/2 in Probe Depth, Tungsten Carbide

  • Features

  • Wide measurement range without changing anvils
  • Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
  • Ratchet stop ensures consistent measurements
  • Self-centering contacts for true readings
  • Blind bore measuring capability above 1/2 in (12.5 mm) diameter
  • Extensions available up to 6 in (150mm) for deep hole measuring
  • 3/4 in setting ring diameter
  • 3-point contact

Specifications

Accuracy0.00015 in
Graduations0.00025 in
MaterialTungsten Carbide
Measuring Range6 to 7 in
Probe Depth4-1/2 in
Resolution0.0002 in
Series78XT Global Series
TypeMechanical
