Starrett LSS 82BZ

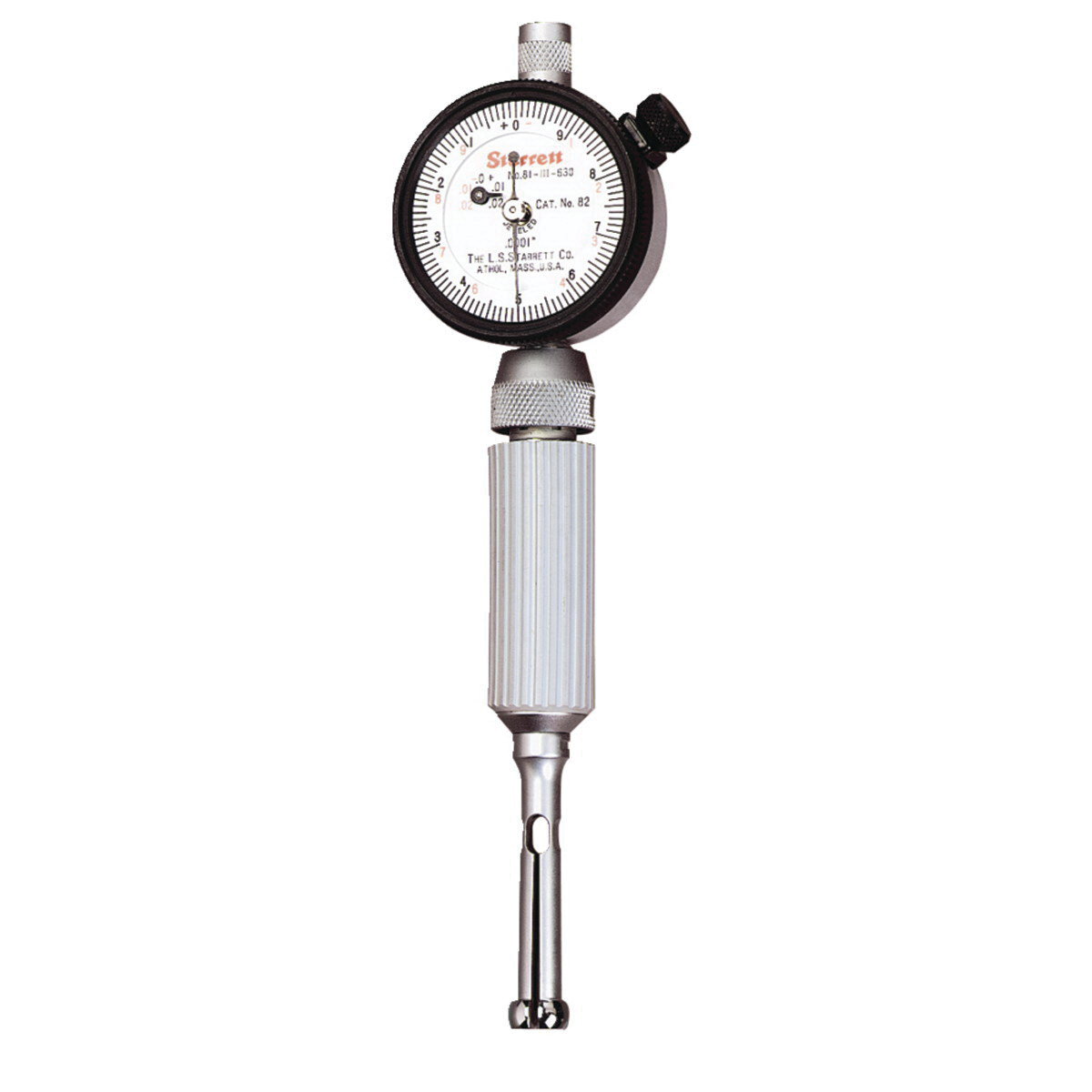

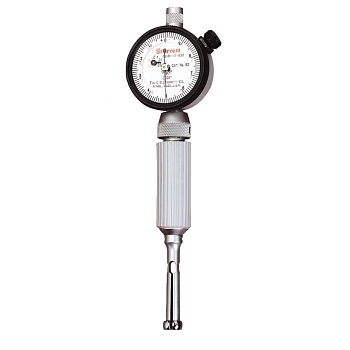

Starrett 82BZ 82 Series Bore Gage, 0.217 to 0.594 in, Graduations: 0.0001 in, 1-1/2 in, 1-3/4 in D Probe, Polished Chrome Probe

UPC: 049659557923
UNSPSC: 41111600
Manufacturer PN: 82BZ
$2,679.82 EA
Factory Order
QTY:


Starrett Bore Gage, Series: 82 Series, 0.217 to 0.594 in, Graduations: 0.0001 in, 0.0001 in Resolution, 1-1/2 in, 1-3/4 in Probe Depth, Polished Chrome Probe, 1-43/64 in Dia x 6-39/64 in H x 1-27/32 in W

  • Features

  • Useful for controlling approach to tolerance without removing workpiece from a machine
  • The split-ball contact is self-centering, the two-point contact detects hole geometry problems like taper, bell-mouth and out-of- roundness
  • Interchangeable probes are hard chrome plated and polished
  • All probes come complete with actuating rod

Specifications

Dimensions1-43/64 in Dia x 6-39/64 in H x 1-27/32 in W
FinishPolished Chrome Probe
Graduations0.0001 in
Measuring Range0.217 to 0.594 in
Probe Depth1-1/2, 1-3/4 in
Resolution0.0001 in
Series82 Series
