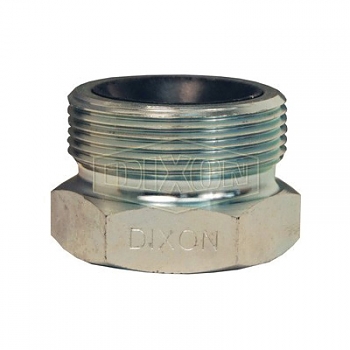

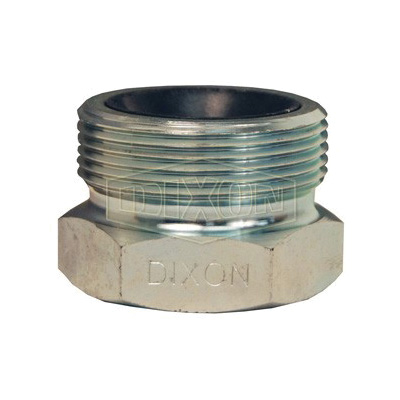

Dixon DIXV GB13

Dixon Ground Joint Spud, Series: Boss, Spud, 1 in Nominal, FNPT, 450 deg F, Steel, Plated, 3-9/16 in W x 5-3/16 in H, Domestic

• Features

• The spud part of the coupling serves as one half of the boss ground joint connection and is usually fixed to the equipment
• The stem part that is clamped to the hose is the other half
• The two halves are connected or disconnected by rotating the wing nut on the spud, when connected they achieve both a mechanical and a pressure seal
• Positive metal-to-polymer seal
• Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet
• Easy to seal
• Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections, they are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1 in ID
• Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
• Worn-out hose couplings can be dangerous
• They should be checked regularly and replace when necessary
