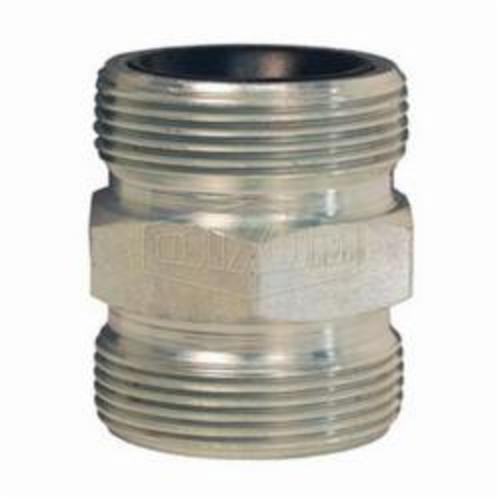

Dixon DIXV GDB13

Dixon Ground Joint Double Spud, Series: Boss, Fitting/Connector: Spud, 1 in Nominal, 1-7/8 in Hex, Steel, Plated, 2-3/16 in L Dimensions

• Features

• The spuds parts of the coupling serves as one half of the boss ground joints connections and is usually fixed to the equipment
• The stem parts than is clamped to the hose is the other half
• The two halves are connected or disconnected by rotating the wing nut on the spuds, when connected they achieve both a mechanical, and a pressure seal
• Positive metal to polymer seal
• Leak-proof seal forms when the metal head of the stem makes contact with the patented polymer seat in the spuds
• The non-metallic polymer seat resists most chemicals found in manufacturing facilities, reference the corrosion resistance chart for additional information
• Easy to seal
• Recommended for steam service up to 450 deg F
• Polymer seat
• Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose
