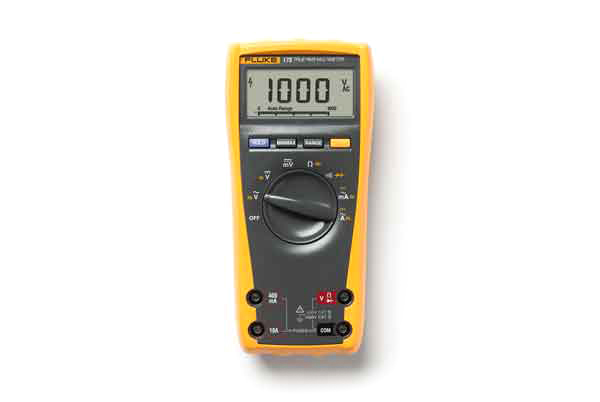

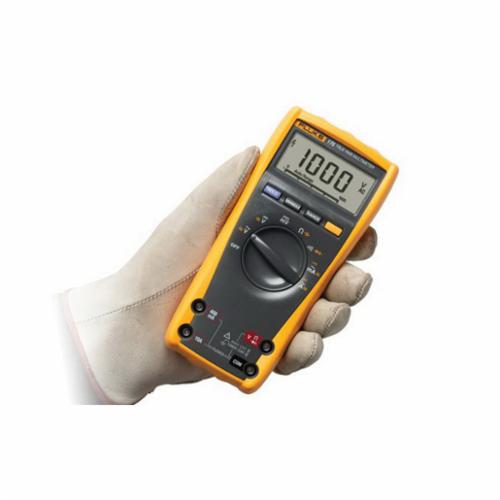

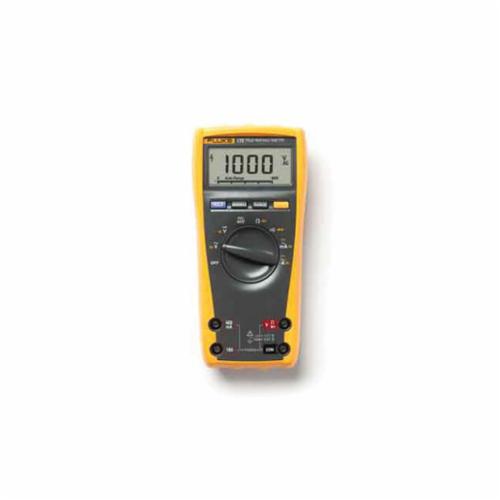

Fluke FLUKE 175 ESFP

Fluke Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 1000 VAC/VDC, 10 A, 100 kHz Frequency, 50 MOhm Resistance, Safety Rating: EN 61010-1 to CAT IV 600 VAC/VDC, CAT III 1000 VAC/VDC, 10000 uF Capacitance, 2% + 3 (500 Hz to 1 kHz) Accuracy, Digital Display, 9 VDC Alkaline NEDA 1604/1604A Battery, Peak Hold: No, Yes Diode Test, 3.54 in W x 1.7 in D x 7.28 in H Dimensions, -10 to 50 deg C, Hard Plastic

• Features

• Manual and automatic ranging
• Display hold and auto-hold
• Frequency and capacitance measurements
• Minimum maximum/average recording
• Closed case calibration through front panel
• Ergonomic case with integrated protective holster
• Digital 6000 count, update 4/s, bar graph 33 segments, update 40/s
• Resistance range - 600 Ohm with accuracy of (0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of (0.9% 1), 50 MOhm with accuracy of (1.5% 3)
• Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of (1.2% 2), 9999 uF with accuracy of 10% typical
• Frequency range 99.99, 999.9, 9.999, 99.99 kHz with accuracy of (0.1% 1)

Specifications

Documents

• Specification Sheet

• Instruction/installation Manual
