Milwaukee MILW 2216-20

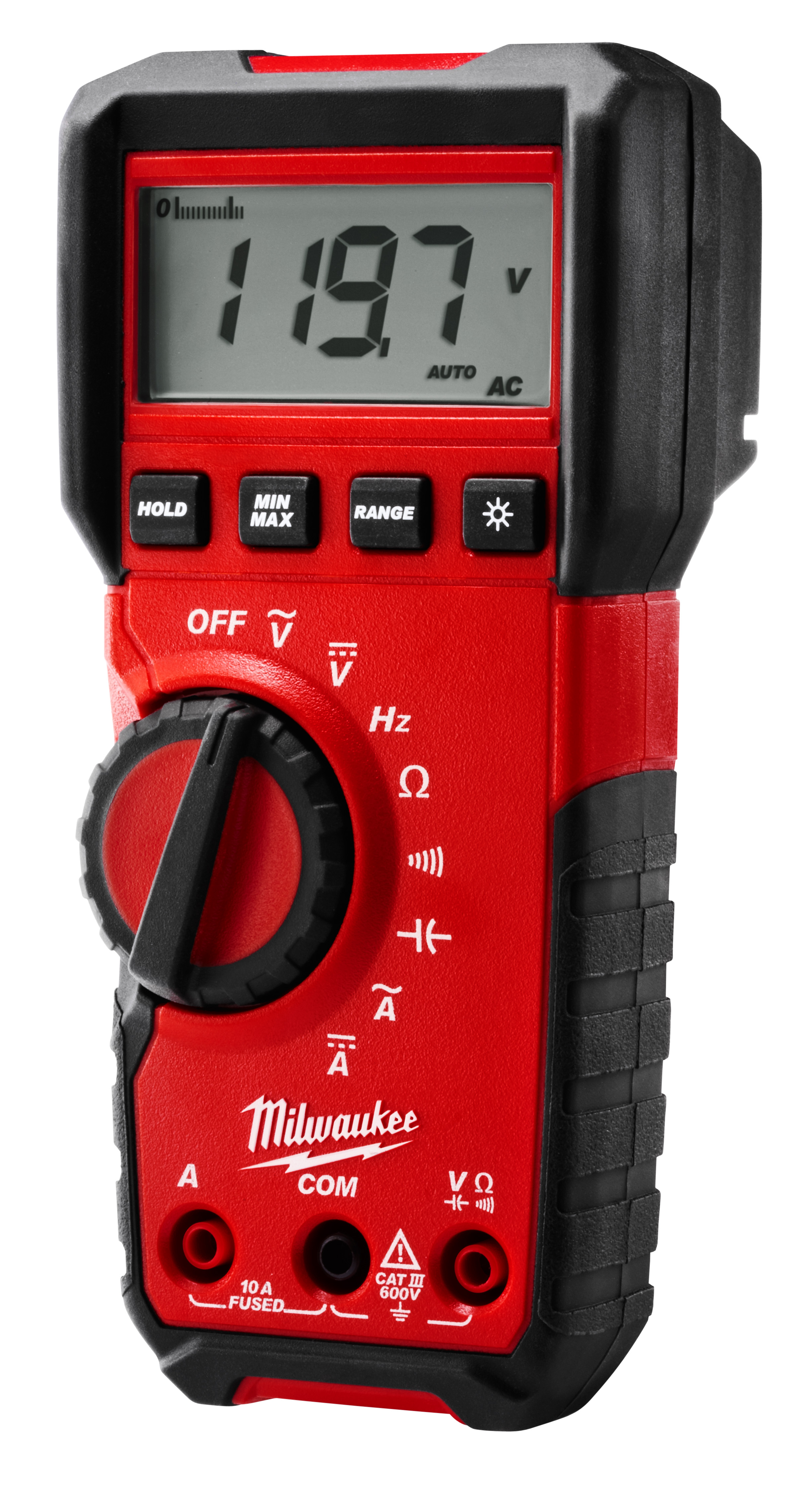

Milwaukee 2216-20 Heavy Duty Digital Multimeter, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 40 mOhm, Black on White LCD Display

Invoice description: Multimeter Digital Multimeter Digital

UPC: 045242236923
UNSPSC: 41113630
Manufacturer PN: 2216-20
$190.86 EA
Factory Order
Estimated to ship in 16 days
QTY:


Milwaukee Digital Multimeter, Heavy Duty, 6 mV to 600 VAC, 600 mV to 600 VDC, 10 A, 10 Hz to 50 kHz Frequency, 40 mOhm Resistance, Safety Rating: Cat III 600 VAC, 1000 uF Capacitance, +/-0.003% + 2 Digits Accuracy, Black on White LCD Display, AA Alkaline Battery, 6-1/2 in L Dimensions, -40 to 752 deg F, Polycarbonate/Rubber Overmold, Black/Red

  • Features

  • True-RMS for accurate measurement in all applications
  • Wide voltage range to 600 VAC/VDC
  • Resistance range from 600 Ohm to 40 mOhm
  • Auto range to mV
  • Frequency measurements from 10 Hz to 50 kHz
  • Measures current to 10 A AC/DC
  • Rugged over-molding increases durability and user grip
  • Cat III 600 V for increased safety
  • Capacitance to 1000 uF

Specifications

ApplicationProfessional, Commercial, Residential and Industrial Applications
Accuracy+/-0.003% + 2 Digits
Amperage Rating10 A
Battery TypeAA Alkaline
Capacitance1000 uF
ColorBlack/Red
Dimensions6-1/2 in L
Display TypeBlack on White LCD
Frequency Rating10 Hz to 50 kHz
MaterialPolycarbonate/Rubber Overmold
Resistance40 mOhm
Safety RatingCat III 600 VAC
Temperature Rating-40 to 752 deg F
TypeHeavy Duty
Voltage Rating6 mV to 600 VAC, 600 mV to 600 VDC

Additional Information

Includes(1) Electrical Test Lead Set, (2) AA Batteries and (1) Manual
Warranty5 years
Standards/ApprovalUL Listed
Country of OriginTW
