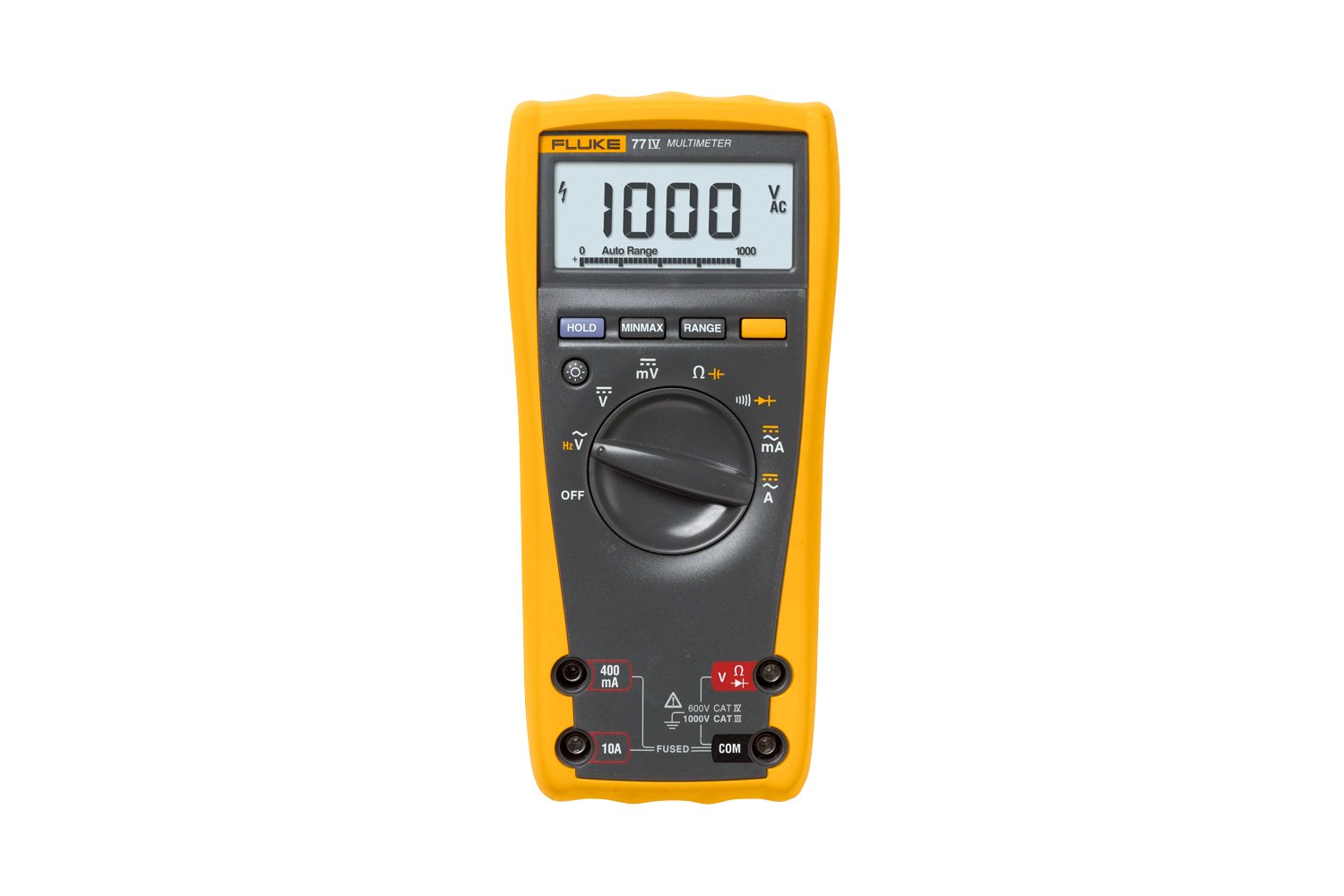

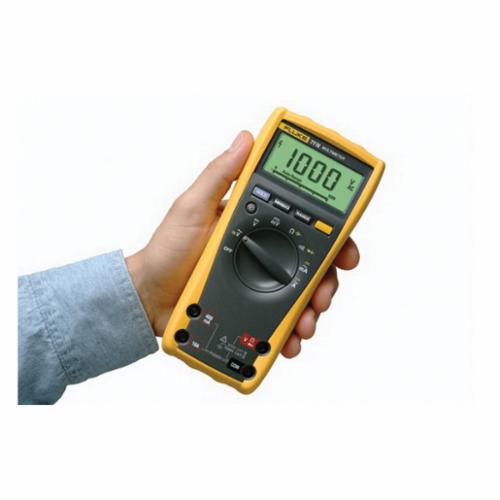

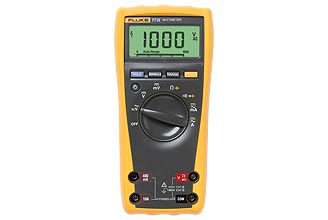

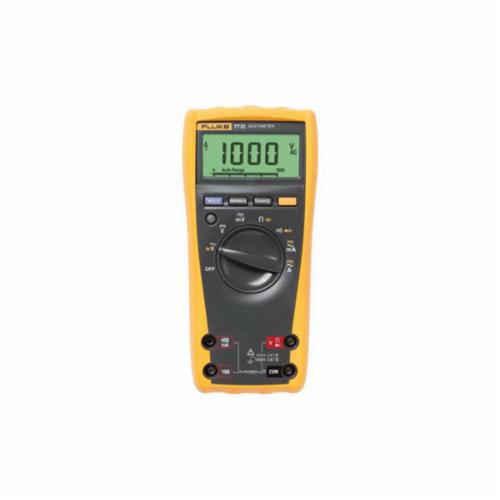

Fluke® FLUKE 77-4

Fluke® FLUKE-77-4 Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm Measuring, 600 mVAC to 1000 VAC, 6 to 1000 VDC, 60 mA to 10 A, 600 Ohm to 50 MOhm, Digital Display

UPC: 095969365239
UNSPSC: 41113630
Manufacturer PN: FLUKE-77-4
$618.04 EA
In stock (4)
QTY:


Fluke® Digital Multimeter, 1000 VDC/VAC, 10 A, 50 MOhm, 600 mVAC to 1000 VAC, 6 to 1000 VDC, 60 mA to 10 A, 99.99 Hz to 99.99 kHz, 600 Ohm to 50 MOhm, Safety Rating: CAT III 1000 V, CAT IV 600 V, 1 nF to 9999 uF, +/- (2% + 2) for AC Voltage, +/- (0.3% + 1) for DC Voltage Accuracy, Digital, 9 VDC Alkaline, NEDA 1604/1604A V Battery, Yes, 7.28 in H x 3.54 in W x 1.7 in D, -10 to 50 deg C, Plastic

  • Features

  • Large display that makes easier to view
  • Ergonomic over-molded housing with integrated probe holders
  • Min/max to record signal fluctuations
  • Backlight for work in dim areas
  • Free your hands with the optional TPAK magnetic hanger
  • Auto and manual ranging
  • ANSI/ISA S82.02.01, CSA C22.21010.1, IEC 61010 to 1000 VAC measurement category III, 600 VAC measurement category IV
  • Resistance range - 600 Ohm, 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm, 50 MOhm with accuracy of +/-(0.5% + 1)
  • Capacitance range 1 nF, 10 uF, 100 uF with accuracy of +/-(1.2% + 2), 9999 uF with accuracy of 10%
  • Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz with accuracy of +/-(0.1% + 1)

Specifications

ApplicationTake measurements to repair most electrical and electronic problems
Measuring Range 1000 VDC/VAC, 10 A, 50 MOhm
Voltage Rating 600 mVAC to 1000 VAC, 6 to 1000 VDC
Amperage Rating 60 mA to 10 A
Frequency Rating 99.99 Hz to 99.99 kHz
Resistance 600 Ohm to 50 MOhm
Safety Rating CAT III 1000 V, CAT IV 600 V
Capacitance 1 nF to 9999 uF
Accuracy +/- (2% + 2) for AC Voltage, +/- (0.3% + 1) for DC Voltage
