Iscar ISCAR 2301286

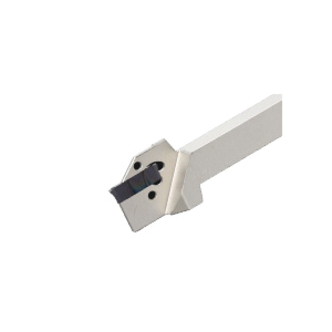

Iscar 2301286 DO-GRIP Integral Shank Indexable Grooving Toolholder, Insert Compatibility: DG. 1.., DG. 3.., 0.1 in Insert Seat, Right Hand Cutting, 0.118 in W Min Groove, External, 3/4 in H x 3/4 in W Shank, DGTR Toolholder
Invoice description:
Dgtr 19-3
Factory Order
Iscar Indexable Grooving Toolholder, Integral Shank, Series: DO-GRIP, Insert Compatibility: DG. 1.., DG. 3.., DGTR Toolholder Type, 1.1 in Head Length, 4-1/2 in Overall Length, 3/4 in H x 3/4 in W Shank, 0.1 in Insert Seat, Right Hand Cutting Direction, 0.118 in Minimum Groove Width, External Internal or External
Features
- 0.098 in seat width
- 1.38 in parting diameter
- 1/8 in maximum groove width
- Without coolant hole
- ISO Code : DGTR 19-3

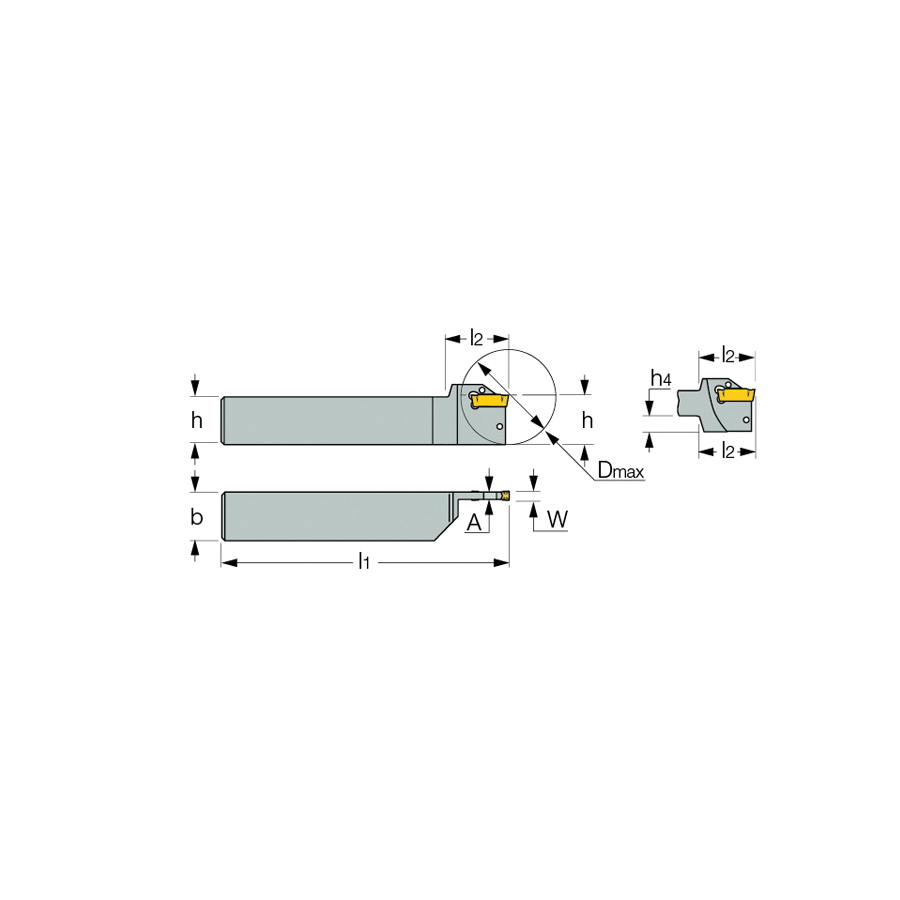

Specifications
ApplicationParting and Grooving
Cutting DirectionRight Hand
Head Length1.1 in
Insert CompatibilityDG. 1.., DG. 3..
Insert Seat Size0.1 in
Internal or ExternalExternal
Minimum Groove Width0.118 in
Overall Length4-1/2 in
SeriesDO-GRIP
Shank Size3/4 in H x 3/4 in W
Toolholder TypeDGTR
TypeIntegral Shank
Additional Information
Country of OriginIL
