Iscar ISCAR 6000133

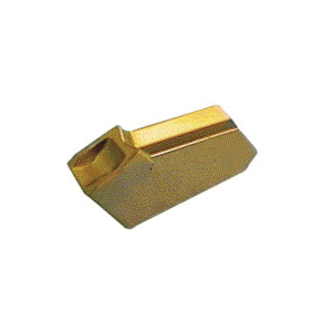

Iscar 6000133 SELF-GRIP Cut-Off Insert, 3-4D Insert, GFL Insert, Material Grade: H, K, M, N, P, S, 3 mm W Cutting, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC20, Uncoated
Invoice description:
Gfl 3 - 4d Ic20
Factory Order

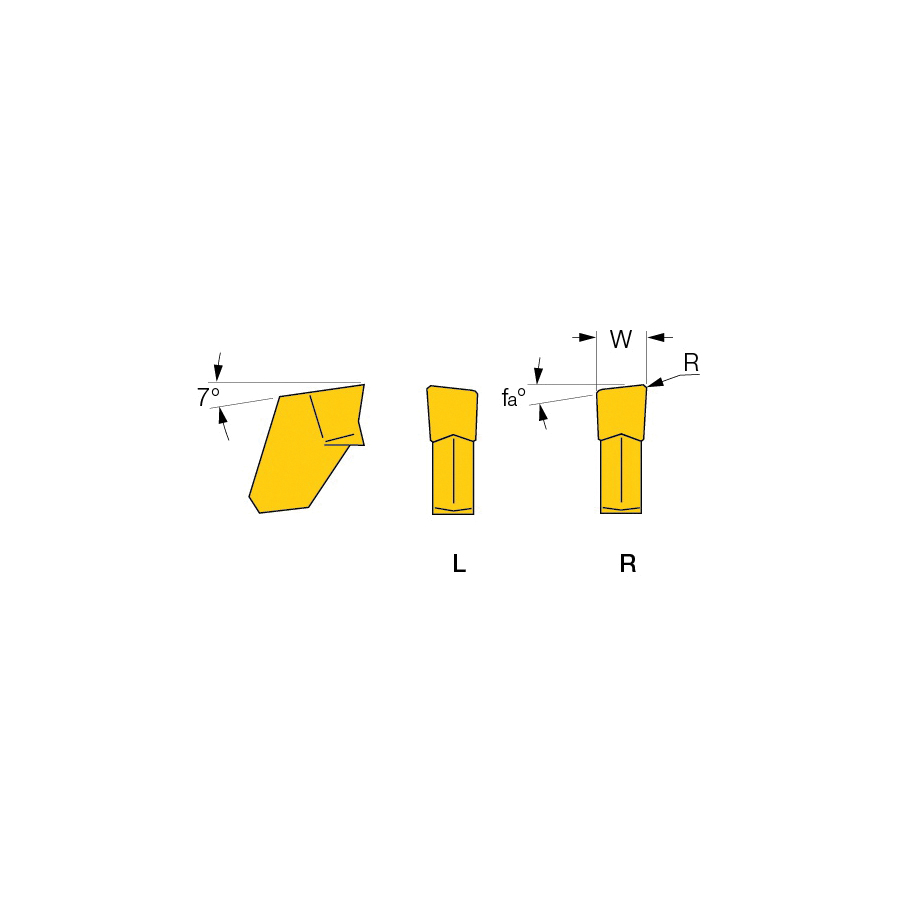

Iscar Cut-Off Insert, Series: SELF-GRIP, GFL Insert, 3-4D Insert, 3 mm Cutting Width, 4 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, 4D Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC20, ISO Code: GFL 3-4D IC20, 90 deg Included Angle, Left Hand of Insert, Carbide, Uncoated, Material Grade: H, K, M, N, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC20 grade - used for semi-finishing, finishing and semi-roughing of aluminum, cast iron and stainless steel
- An uncoated carbide grade
Specifications
ApplicationFor groove turning applications
Chipbreaker4D
Corner Radius0.2 mm
Cutting Width3 mm
FinishUncoated
Hand of InsertLeft
Included Angle90 deg
Insert Size3-4D
Insert StyleGFL
ISO CodeGFL 3-4D IC20
Lead Angle4 deg
Lead Angle DirectionLeft Hand
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, P, S
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width3 mm
Additional Information
Standards/ApprovalISO 9001
Country of OriginIS
