Iscar ISCAR 6000263

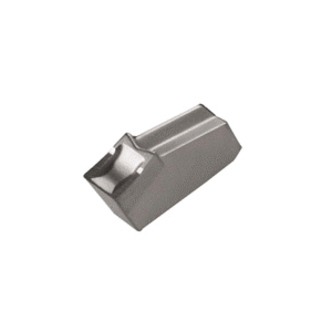

Iscar 6000263 SELF-GRIP Cut-Off/Parting Insert, 2 Insert, GFN Insert, 2.2 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC54, Uncoated
Invoice description:
Gfn 2 Ic54
Factory Order

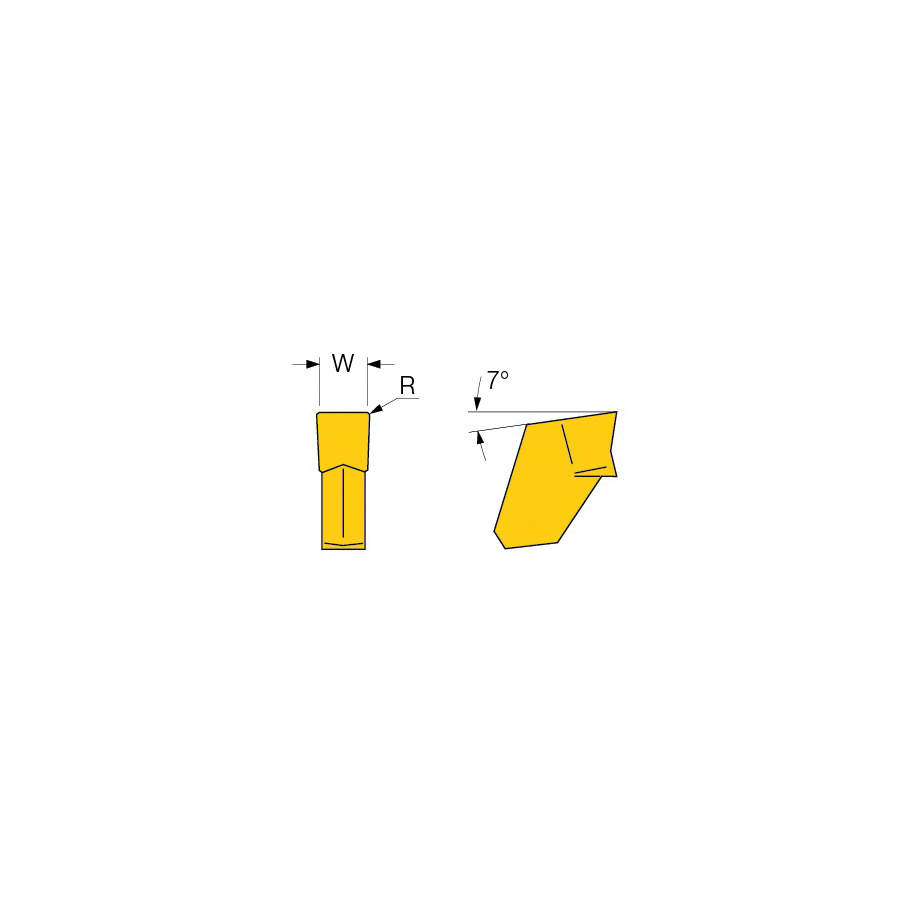

Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 2 Insert, 2.2 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 2.2 mm Width, 0.16 mm Corner Radius, Manufacturers Grade: IC54, ISO Code: GFN 2 IC54, 90 deg Included Angle, Neutral Hand of Insert, Carbide, Uncoated
Features
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
Corner Radius0.16 mm
Cutting Width2.2 mm
FinishUncoated
Hand of InsertNeutral
Included Angle90 deg
Insert Size2
Insert StyleGFN
ISO CodeGFN 2 IC54
Lead Angle0 deg
Lead Angle DirectionNeutral
Manufacturers GradeIC54
MaterialCarbide
Relief Angle7 deg
SeriesSELF-GRIP
ShapeRectangle
Width2.2 mm
Additional Information
Standards/ApprovalISO 9001
Country of OriginIS
