Iscar ISCAR 6011367

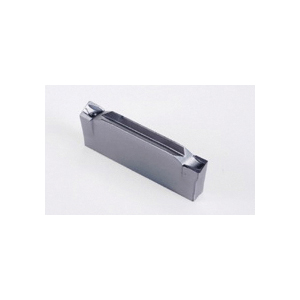

Iscar 6011367 DO-GRIP Parting Insert With Internal Coolant Channel, 3102C-15D Insert, DGR Insert, Material Grade: M, P, S, 3.1 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC328
Invoice description:
Dgr 3102c-15d Ic328
Factory Order

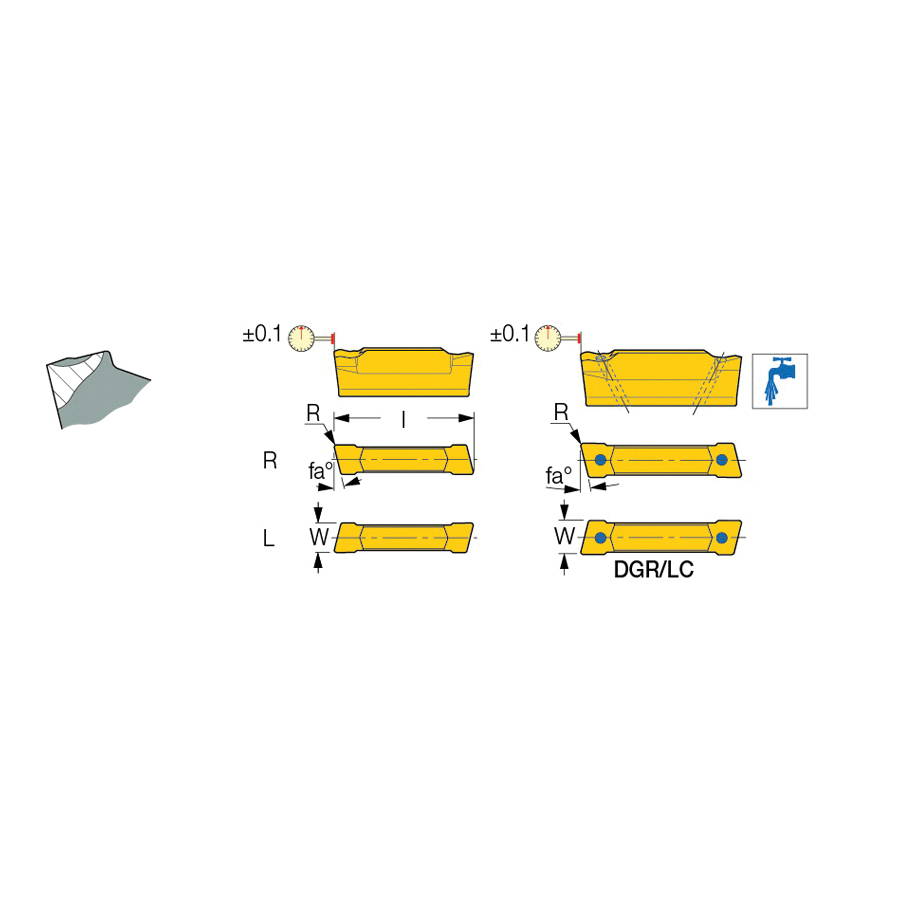

Iscar Parting Insert, Series: DO-GRIP, DGR Insert, 3102C-15D Insert, 3.1 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 20.9 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: DGR 3102C-15D IC328, 90 deg Included Angle, Right Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC328 grade - a thin PVD-coated TiCN layer on a P45-K40 substrate
- Very high toughness
- For milling, parting and grooving of steel, stainless and alloy steels at low-to medium cutting speeds and for unstable machining condition
Specifications
ApplicationFor groove turning applications
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3.1 mm
FinishPVD Coated
Hand of InsertRight
Included Angle90 deg
Insert Size3102C-15D
Insert StyleDGR
ISO CodeDGR 3102C-15D IC328
Lead Angle15 deg
Lead Angle DirectionRight Hand
Length20.9 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesDO-GRIP
ShapeRectangle
Width3.1 mm
Additional Information
Country of OriginIS
