Iscar ISCAR 6011397

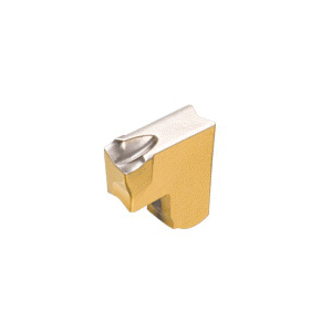

Iscar 6011397 TANG-GRIP Parting Insert, ANSI Code: TAG R3J-15D, TAG Insert, 7 deg Relief Angle, Manufacturers Grade: IC830
Invoice description:
Tag R3j-15d Ic830
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, 7 deg Relief Angle, 3 mm Width, 0.2 mm Corner Radius, Manufacturers Grade: IC830, ANSI Code: TAG R3J-15D, ISO Code: TAG R/L-J/JS
Features
- First choice for soft materials, alloy steel and austenitic stainless steel
- Parting of tubes, small diameters and thin walled parts
- Cutting edge with positive rake used at low-to-medium feeds
- The JS-type has sharp corners
Specifications
ANSI CodeTAG R3J-15D
Corner Radius0.2 mm
Insert StyleTAG
ISO CodeTAG R/L-J/JS
Manufacturers GradeIC830
Relief Angle7 deg
SeriesTANG-GRIP
Width3 mm
