Iscar ISCAR 6011402

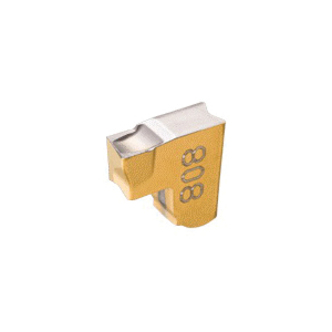

Iscar 6011402 TANG-GRIP Parting Insert, L3C-15D Insert, TAG Insert, Material Grade: M, P, S, 3 mm W Cutting, 15 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturers Grade: IC830, PVD Coated
Invoice description:
Tag L3c-15d Ic830
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, L3C-15D Insert, 3 mm Cutting Width, 15 deg Lead Angle, Left Hand Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3 mm Width, C Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: TAG L3C-15D IC830, 90 deg Included Angle, Left Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC830 grade - a SUMO TEC AlTiN+TiN PVD-coated grade
- Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel
- High toughness and wear resistance

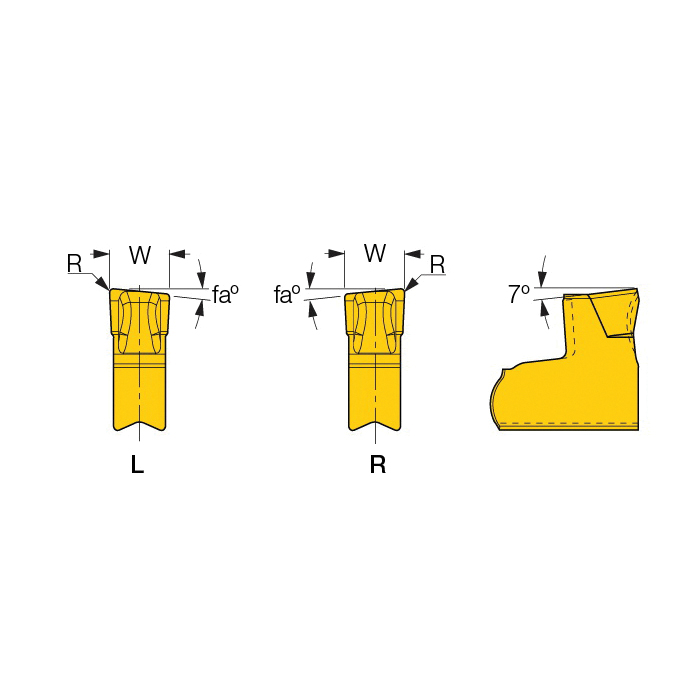

Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
ChipbreakerC
Corner Radius0.2 mm
Cutting Width3 mm
FinishPVD Coated
Hand of InsertLeft
Included Angle90 deg
Insert SizeL3C-15D
Insert StyleTAG
ISO CodeTAG L3C-15D IC830
Lead Angle15 deg
Lead Angle DirectionLeft Hand
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Relief Angle7 deg
SeriesTANG-GRIP
ShapeRectangle
Width3 mm
Additional Information
Country of OriginIL
