Iscar ISCAR 6011403

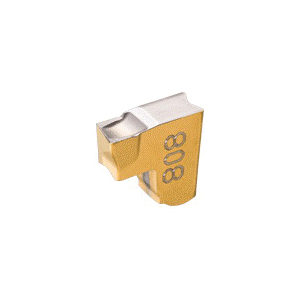

Iscar 6011403 TANG-GRIP Parting Insert, ANSI Code: TAG L3C-6D, TAG Insert, 7 deg Relief Angle, Manufacturers Grade: IC808
Invoice description:
Tag L3c-6d Ic808
Factory Order
Iscar Parting Insert, Series: TANG-GRIP, TAG Insert, 7 deg Relief Angle, 3 mm Width, 0.2 mm Corner Radius, Manufacturers Grade: IC808, ANSI Code: TAG L3C-6D, ISO Code: TAG R/L-C
Features
- First choice for the parting of bars, hard materials and tough applications
- A positive rake, single cavity (except 7 and 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength
- Medium-to-high feeds
Specifications
ANSI CodeTAG L3C-6D
Corner Radius0.2 mm
Insert StyleTAG
ISO CodeTAG R/L-C
Manufacturers GradeIC808
Relief Angle7 deg
SeriesTANG-GRIP
Width3 mm
