Iscar ISCAR 6094767

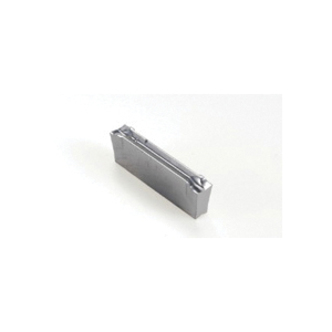

Iscar 6094767 DO-GRIP Cut-Off/Parting Insert, 3100JS DGN Insert, Material Grade: M, P, S, 3.1 mm W Cutting, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC328, PVD Coated
UNSPSC:
23242107
Manufacturer PN: 6094767
$40.56 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
This item has been discontinued.
Iscar Cut-Off/Parting Insert, Series: DO-GRIP, DGN Insert, 3100JS Insert, 3.1 mm Cutting Width, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangular Shape, 3.1 mm Width, 19.7 mm Length, JS Chipbreaker, 0.02 mm Corner Radius, Manufacturer's Grade: IC328, ISO Code: DGN 3100JS IC328, 90 deg Included Angle, Neutral Hand of Insert, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low-to-medium feeds
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Series DO-GRIP
Insert Style DGN
Insert Size 3100JS
Cutting Width 3.1 mm
Lead Angle Direction Neutral
Relief Angle 7 deg
Shape Rectangular
