Iscar ISCAR 6097025

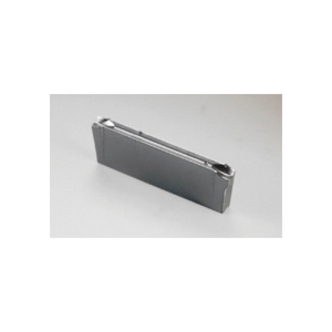

Iscar 6097025 DO-GRIP Cut-Off/Parting Insert, 2202J DGR Insert, Material Grade: M, P, S, 2.2 mm W Cutting, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC328, PVD Coated
UNSPSC:
23242107
Manufacturer PN: 6097025
$38.58 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
This item has been discontinued.
Iscar Cut-Off/Parting Insert, Series: 452, DGR Insert, 2202J Insert, 2.2 mm Cutting Width, 15 deg Lead Angle, Right Hand Lead Angle Direction, 7 deg Relief Angle, Rectangular, 2.2 mm Width, 21 mm Length, J Chipbreaker, 0.2 mm Corner Radius, Manufacturer's Grade: IC328, ISO Code: DGR 2202J-15D IC328, 90 deg Included Angle, Right Hand, Carbide, PVD Coated, Material Grade: M, P, S
Features
- First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin walled parts at low-to-medium feeds
- Cutting edge with a positive rake
- IC328 grade - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to-medium cutting speeds and for unstable machining conditions
Specifications
ApplicationExternal Grooving, Internal Grooving and Groove Turning
Series DO-GRIP
Insert Style DGR
Insert Size 2202J
Cutting Width 2.2 mm
Lead Angle 15 deg
Lead Angle Direction Right Hand
Relief Angle 7 deg
Shape Rectangular
