Sandvik Coromant SANC 7860513

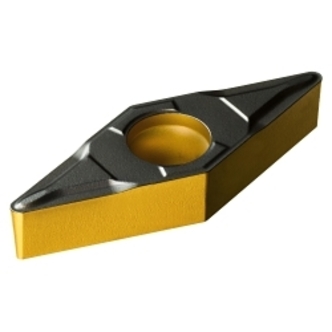

Sandvik Coromant 7860513 CoroTurn 107 2-Cutting Edge Turning Insert, ANSI Code: VBMT 221-PF 4415, VBMT Insert, Material Grade: P, K, 1103 Insert, Diamond Shape, Positive Rake, Neutral Cutting, For Use On Steel and Cast Iron, Carbide
Invoice description:
Ins Vbmt 221-pf 4415
Factory Order
Sandvik Coromant Turning Insert, 2-Cutting Edge, Series: CoroTurn 107, VBMT Insert, 1103 Insert, Diamond Shape, 1/4 in Inscribed Circle, 1/8 in Thickness, Positive Rake, PF Chipbreaker, 0.0156 in Corner Radius, Manufacturers Grade: 4415, ANSI Code: VBMT 221-PF 4415, ISO Code: VBMT 11 03 04-PF 4415, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, K, For Use On: Steel and Cast Iron
Features
- Low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, extremely sharp insert offer for exceptional surface finish
- Holders with conventional and precision coolant design
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Wiper geometries available for high feeds and excellent surface finish
Specifications
ApplicationFor internal and external turning of slender components and finishing applications
ANSI CodeVBMT 221-PF 4415
ChipbreakerPF
Corner Radius0.0156 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel and Cast Iron
Included Angle35 deg
Inscribed Circle1/4 in
Insert Size1103
Insert StyleVBMT
ISO CodeVBMT 11 03 04-PF 4415
Manufacturers Grade4415
MaterialCarbide
Material GradeP, K
RakePositive
Relief Angle5 deg
SeriesCoroTurn 107
ShapeDiamond
Thickness1/8 in
Type2-Cutting Edge
Additional Information
Country of OriginSE
