Sandvik Coromant SANC 11778

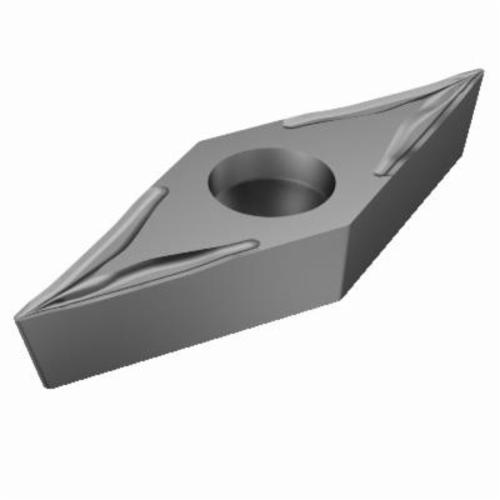

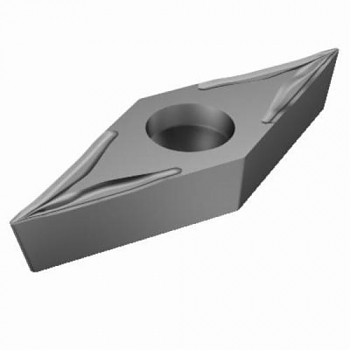

Sandvik Coromant 5755594 CoroTurn® 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBGT 331-UM H13A, VBGT Insert, Material Grade: K, M, N, P, S, 331 Insert, Rhombic Shape, 16 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturer's Grade: H13A
Invoice description:
Insert Vbgt 16 04 04-um H13a Swiss T-max U
In stock
(5)

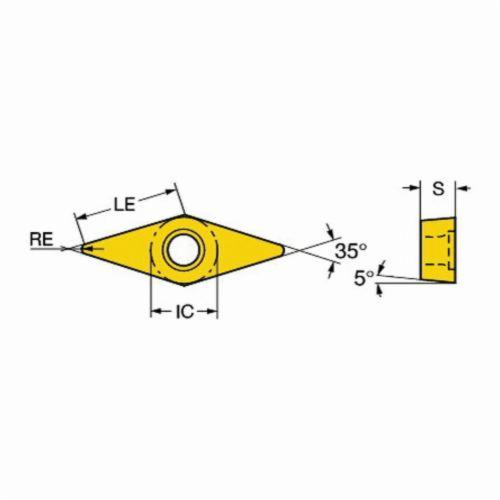

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn® 107, VBGT Insert, 331 Insert, Rhombic, 0.157 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, 16 Seat, Positive Rake, UM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: H13A, ANSI Code: VBGT 331-UM H13A, ISO Code: VBGT 16 04 04-UM H13A, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, M, N, P, S, For Use On: Stainless Steel, Steel, Cast Iron and Heat-Resistant Super Alloys
Features
- Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
Type1-Sided Basic Shape
SeriesCoroTurn® 107
Insert StyleVBGT
Insert Size331
ShapeRhombic
Maximum Depth of Cut0.157 in
Inscribed Circle3/8 in
Thickness0.1874 in
Length0.6537 in
Additional Information
Country of OriginSE
