Sandvik Coromant SANC 6434012
Sandvik Coromant 6434012 CoroTurn 107 Turning Insert, ANSI Code: CCMT 2(1.5)2-PM 4325, CCMT Insert, Material Grade: K, P, 2(1.5)2 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide
In stock
(6)

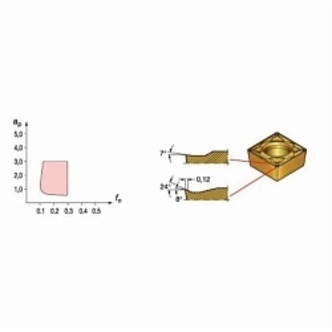

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 2(1.5)2 Insert, Diamond, 2.4 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 0.0937 in Thickness, 06 Seat, Positive Rake, PM Chipbreaker, 0.0312 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: CCMT 2(1.5)2-PM 4325, ISO Code: CCMT 06 02 08-PM 4325, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Features
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Specifications
ApplicationMedium Machining Applications
ANSI CodeCCMT 2(1.5)2-PM 4325
ChipbreakerPM
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.1102 in
Included Angle80 deg
Inscribed Circle1/4 in
Insert Size2(1.5)2
Insert StyleCCMT
ISO CodeCCMT 06 02 08-PM 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut2.4 mm
RakePositive
Relief Angle7 deg
Seat Size06
SeriesCoroTurn 107
ShapeDiamond
Thickness0.0937 in
