Sandvik Coromant SANC 6265884
Sandvik Coromant 6265884 T-Max P Turning Insert, ANSI Code: CNMG 433-PM 4325, CNMG Insert, Material Grade: K, P, 433 Insert, Rhombic Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4325
Invoice description:
Cnmg 433pm 4325 Loc 10066187
In stock
(10)

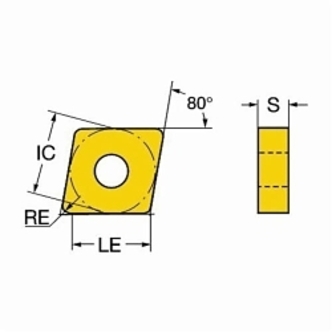

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 433 Insert, Rhombic, 0.217 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 12 Seat, Negative Rake, PM Chipbreaker, 0.047 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: CNMG 433-PM 4325, ISO Code: CNMG 12 04 12-PM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
Specifications
ApplicationMedium Applications
ANSI CodeCNMG 433-PM 4325
ChipbreakerPM
Corner Radius0.047 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size433
Insert StyleCNMG
ISO CodeCNMG 12 04 12-PM 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.217 in
RakeNegative
Relief Angle0 deg
Seat Size12
SeriesT-Max P
ShapeRhombic
Thickness0.187 in
Additional Information
Country of OriginJP
