Simpson Strong-Tie SIMS ZN25100

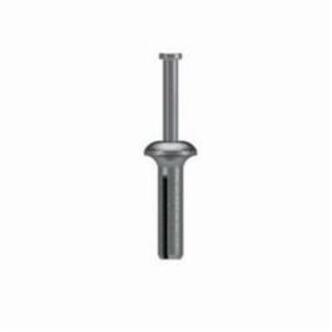

Simpson Strong-Tie ZN25100 Nailon Drive Pin Anchor, 1/4 in Dia, 1 in OAL, Die-Cast Zamak 3 Alloy Body Shell, Carbon Steel Pin, Mushroom Head Head

Invoice description: Anchor Drv Nail 1/4 X 1" 100/bx

UPC: 044315548703
UNSPSC: 31162100
Manufacturer PN: ZN25100
Factory Order
Estimated to ship in 14 days
--Price Unavailable--


Simpson Strong-Tie Drive Pin Anchor, Series: Nailon, 1/4 in Dia, 1 in Overall Length, Die-Cast Zamak 3 Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 5/8 in, 3/4 in, 1-1/2 in Minimum Embedment Depth, 160 lb/190 lb/265 lb at 3000 psi Shear Strength, 150 lb, 195 lb, 265 lb at 3000 psi Tensile, Zinc Plated

  • Features

  • Zinc Nailon anchors are low cost, easy-to-install anchors for applications under static loads
  • Pin and head configuration designed to make anchor tamper resistant
  • Carbon steel pin
  • The allowable loads are based on a safety factor of 4
  • 590 lb/780 lb/1050 lb ultimate tension load at 3000 psi for concrete
  • 635 lb/765 lb/1050 lb ultimate shear load at 3000 psi for concrete
  • 2600 to 2700 deg F freezing/melting point

Specifications

ApplicationFor a low cost solution on light duty applications under static loads
Body Shell MaterialDie-Cast Zamak 3 Alloy
Diameter1/4 in
Drill Size1/4 in
FinishZinc Plated
Head TypeMushroom Head
Minimum Embedment Depth5/8 in, 3/4 in, 1-1/2 in
Overall Length1 in
Pin MaterialCarbon Steel
SeriesNailon
Shear Strength160 lb/190 lb/265 lb at 3000 psi
Tensile Strength150 lb, 195 lb, 265 lb at 3000 psi

Additional Information

Standards/ApprovalOSHA 29 CFR 1910.1000|Federal Specification A-A-19
