Williams WMS 6C15T10

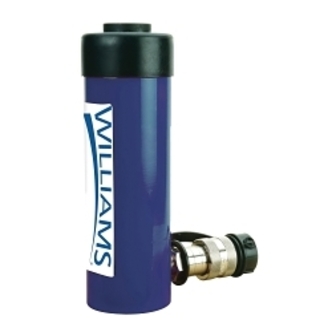

Williams JHW6C15T10 Single Acting Cylinder, 15 ton Capacity, 2 in Bore, 9.88 in L Stroke, 14.69 in Retract, 1.63 in Dia Rod, 9550 psi Pressure
Invoice description:
15t Single Acting Cylind Er 10''
UPC: 662459922809
UNSPSC:
27131701
Manufacturer PN: JHW6C15T10
$1,338.88 PK
Factory OrderEstimated to ship in 14 days
Williams Cylinder, Single Acting, 15 ton Capacity, 2 in Bore, 9.88 in Stroke Length, 14.69 in Retract, 1.63 in Rod Diameter, 9550 psi Pressure, Steel Housing Material, 2-3/4 in OD Dimensions
Features
- Internal plunger threads
- Snap in grooved saddles
- Rod wiper seals out dirt and contamination
- Collar fixture threads
- 2-base mounting holes on most models
- High strength steel construction from gun drilled solid bar
- High flow 3/8 in NPTF couplers
- Collar thread protector
- One piece high grade alloy bearing for side load protection and long life
- Polyurethane cup seal provides optimum performance
Specifications
ApplicationFor lifting and pressing applications
Bore Size2 in
Capacity15 ton
Dimensions2-3/4 in OD
Housing MaterialSteel
Pressure Rating9550 psi
Retract14.69 in
Rod Diameter1.63 in
Stroke Length9.88 in
TypeSingle Acting
Additional Information
Country of OriginTW
