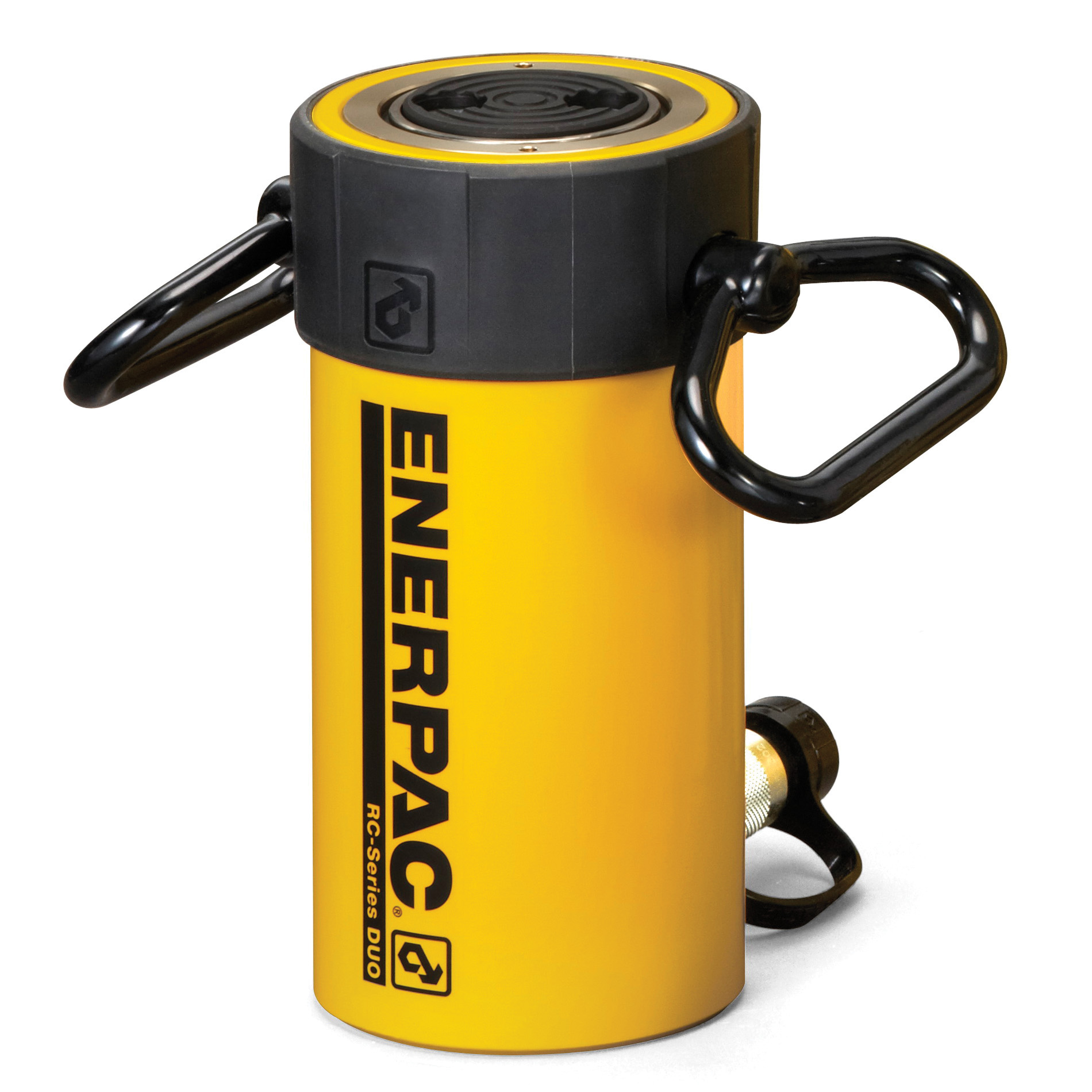

Enerpac ENE RC506

Enerpac RC-506 DUO General Purpose Single Acting Hydraulic Cylinder, 50 ton Capacity, 3-3/4 in Dia Bore, 6-1/4 in L Stroke, 11.13 in H Retract, 3-3/4 in Dia Rod, 700 bar

Invoice description: Cylinder 50 Ton 6-1/4" S Tk 10000 Psi, Spring Re

UPC: 662005301645

UNSPSC: 27121602

Manufacturer PN: RC-506

^$2,891.22 EA

Factory Order
Estimated to ship in 8 days

enlarge

Product Overview

Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 50 ton, 3-3/4 in Dia Bore, 6-1/4 in Stroke, 11.13 in H Retract, Base Mount, 3-3/4 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 5 in OD

Features
Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

Specifications

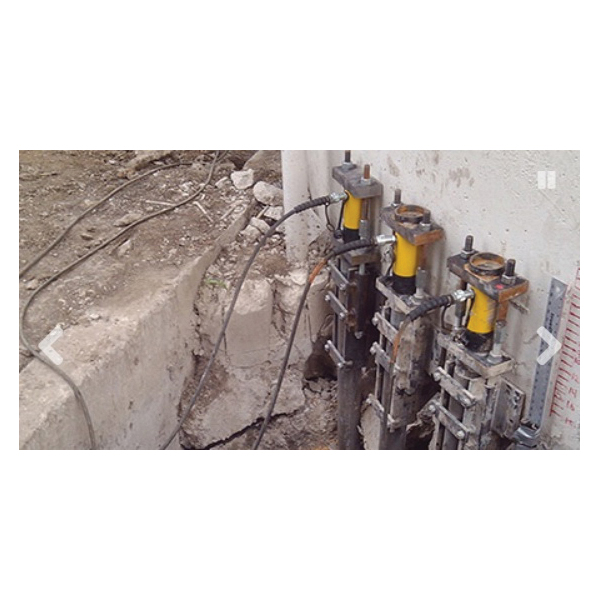

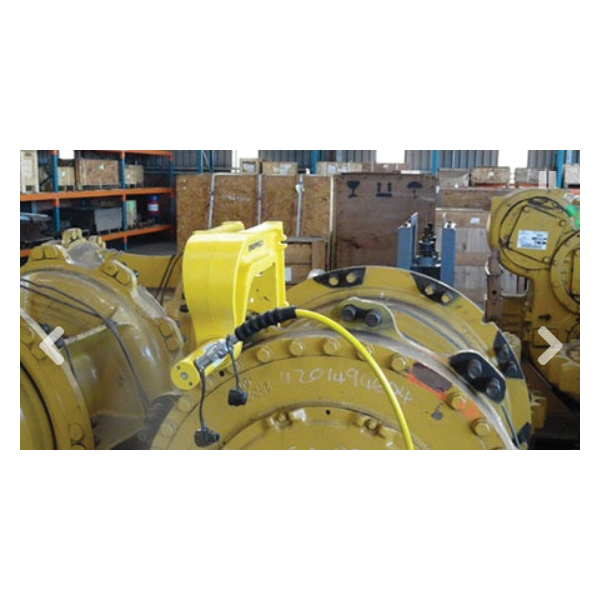

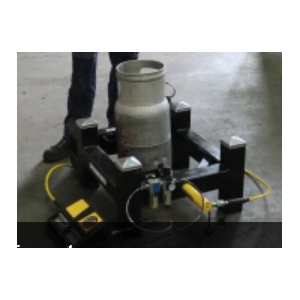

ApplicationFor safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers

Bore Size3-3/4 in Dia

Capacity50 ton

Dimensions5 in OD

FinishBaked Enamel

Housing MaterialAlloy Steel

Mounting TypeBase

Pressure Rating700 bar

Retract11.13 in H

Rod Diameter3-3/4 in

SeriesRC

Stroke Length6-1/4 in

TypeDUO General Purpose Single Acting
