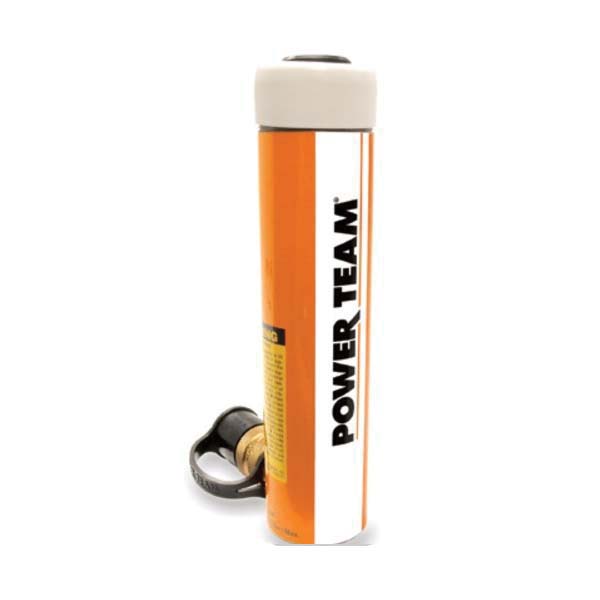

Power Team SPX C102C
Power Team C102C C Series General Purpose Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1-11/16 in Dia Bore, 2-1/8 in L Stroke, 4-3/4 in H Retract, 1-1/2 in Dia Rod, 8948 psi
Invoice description:
Cylinder 10 Ton 2-1/8" Stroke "cylinder 10 Ton 2-1/8"stroke"
In stock
(1)
Power Team Hydraulic Cylinder, General Purpose Single Acting Spring Return, Series: C, 10 ton, 1-11/16 in Dia Bore, 2-1/8 in Stroke, 4-3/4 in H Retract, Base Mount, 3/8 in NPTF, 1-1/2 in Rod Dia, 8948 psi, Solid Steel Housing, 2-1/4 in OD
Features
- Rugged and high quality general purpose cylinder
- Aluminum bronze bearing reduces wear caused by off-center loads
- Maximum sized springs speed piston return and increase spring life
- Solid steel cylinder body for durability
- Chrome plated piston rod resists wear and corrosion
- Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base
- Base mounting holes standard on 5 through 55 ton cylinders, optional on 75 and 100 ton cylinders
Specifications

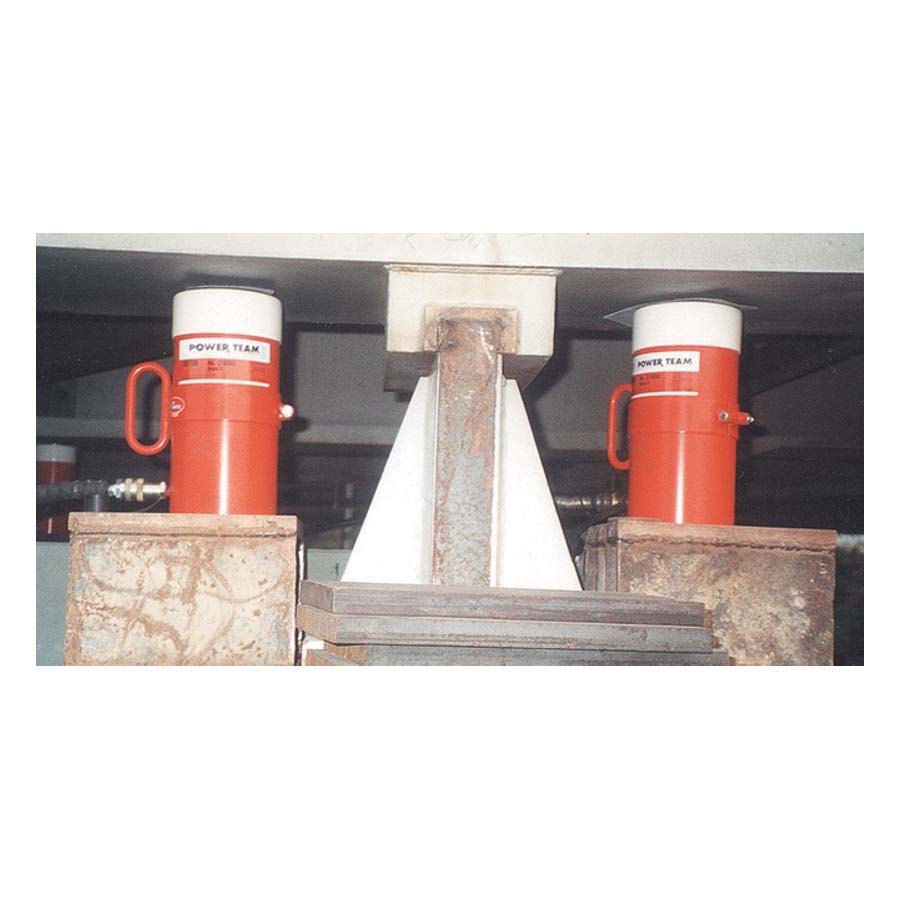

ApplicationFor lifting and pressing applications
Bore Size1-11/16 in Dia
Capacity10 ton
Dimensions2-1/4 in OD
Housing MaterialSolid Steel
Mounting TypeBase
Port Size3/8 in NPTF
Pressure Rating8948 psi
Retract4-3/4 in H
Rod Diameter1-1/2 in
SeriesC Series
Stroke Length2-1/8 in
TypeGeneral Purpose Single Acting Spring Return
Additional Information
Standards/ApprovalASME B30.1
Country of OriginUS
Instruction/installation Manual
