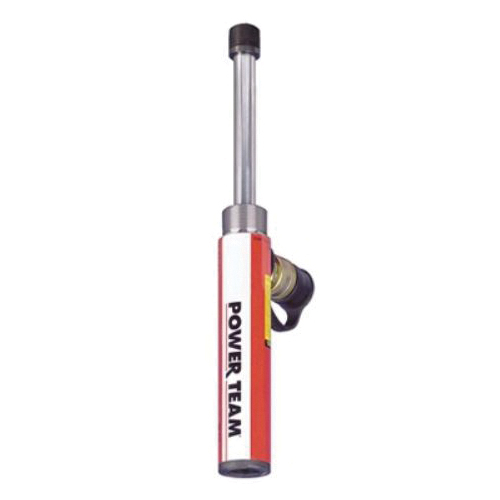

Power Team SPX RP55
Power Team RP55 CPS Pulling Single Acting Spring Return Cylinder Pump Set, 5 ton Capacity, 1.69 in Bore, 5-1/2 in L Stroke, 8850 psi Pressure
Invoice description:
Cyl 5 Ton 51/2 Stroke Cyl 5 Ton 51/2 Stroke
Factory Order
Power Team Cylinder Pump Set, Pulling Single Acting Spring Return, Series: CPS, 5 ton Capacity, 1.69 in Bore, 5-1/2 in Stroke Length, 8850 psi Pressure, 17.38 in H x 2.25 in W Dimensions
Features
- Heavy duty compression spring provides long cycle life and rapid extension of piston
- Spring automatically extends piston rod when pump pressure is released
Specifications
ApplicationFor pulling and tensioning
Bore Size1.69 in
Capacity5 ton
Dimensions17.38 in H x 2.25 in W
Pressure Rating8850 psi
SeriesCPS
Stroke Length5-1/2 in
TypePulling Single Acting Spring Return
Additional Information
Standards/ApprovalASME B30.1|CSA Approved
