Power Team SPX RSS1002

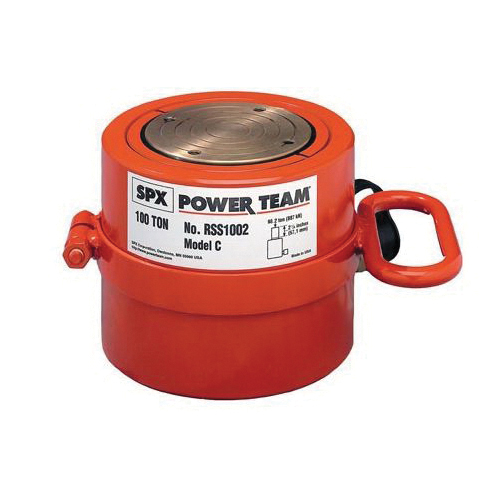

Power Team RSS1002 RSS Heavy Duty Shorty Welded Hydraulic Cylinder, 100 ton Capacity, 5 in Bore, 2-1/4 in L Stroke, 5-1/2 in H Retract, 4-3/8 in Dia Rod, 10186 psi Pressure

Invoice description: Cyl 100 Ton 21/4 Stroke K Cyl 100 Ton 21/4 Strokek

UPC: 662536279277
UNSPSC: 27121602
Manufacturer PN: RSS1002
$3,049.71 EA
Factory Order
Estimated to ship in 7 days
QTY:


Power Team, RSS1002, Hydraulic Cylinder, Heavy Duty Shorty Welded, Series: RSS, 100 ton Capacity, 5 in Bore, 2-1/4 in Stroke Length, 5-1/2 in H Retract, 15/16 in Port, 4-3/8 in Rod Diameter, 10186 psi Pressure, 6-5/8 in OD Dimensions

  • Features

  • Coupler on 10 through 50 ton models is angled upward 5 deg for added clearance
  • Power-Tech plated piston rods and gland nuts resist scoring and corrosion
  • Heavy duty return spring (except for double acting models) provides fast piston return and low collapsed height
  • Grooved piston top keeps load from sliding
  • Cylinders can be dead ended at full capacity
  • Removable carrying handle on 100 ton and 250 ton models

Specifications

ApplicationFor confined areas from 3-1/2 to 11-7/16 in clearance
Bore Size5 in
Capacity100 ton
Dimensions6-5/8 in OD
Port Size15/16 in
Pressure Rating10186 psi
Retract5-1/2 in H
Rod Diameter4-3/8 in
SeriesRSS
Stroke Length2-1/4 in
TypeHeavy Duty Shorty Welded

Additional Information

Standards/ApprovalASME B30.1|CE Certified
