Power Team SPX RSS101

Power Team RSS101 Shorty Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1-11/16 in Dia Bore, 1-1/2 in L Stroke, 3-1/2 in H Retract, 1-1/2 in Dia Rod, 8943 psi

Invoice description: Cyl 10 Ton 11/2 Stroke E Cyl 10 Ton 11/2 Strokee

UPC: 662536003551

UNSPSC: 27121602

Manufacturer PN: RSS101

^$1,018.05 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Power Team Hydraulic Cylinder, Shorty Single Acting Spring Return, Series: RSS, 10 ton, 1-11/16 in Dia Bore, 1-1/2 in Stroke, 3-1/2 in H Retract, 1-1/2 in Rod Dia, 8943 psi, Steel Housing, 2-3/4 in OD

Features

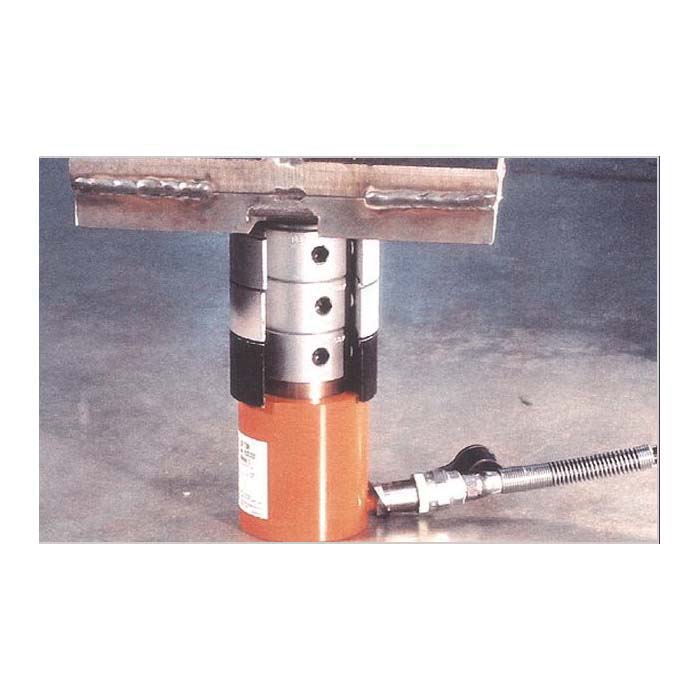

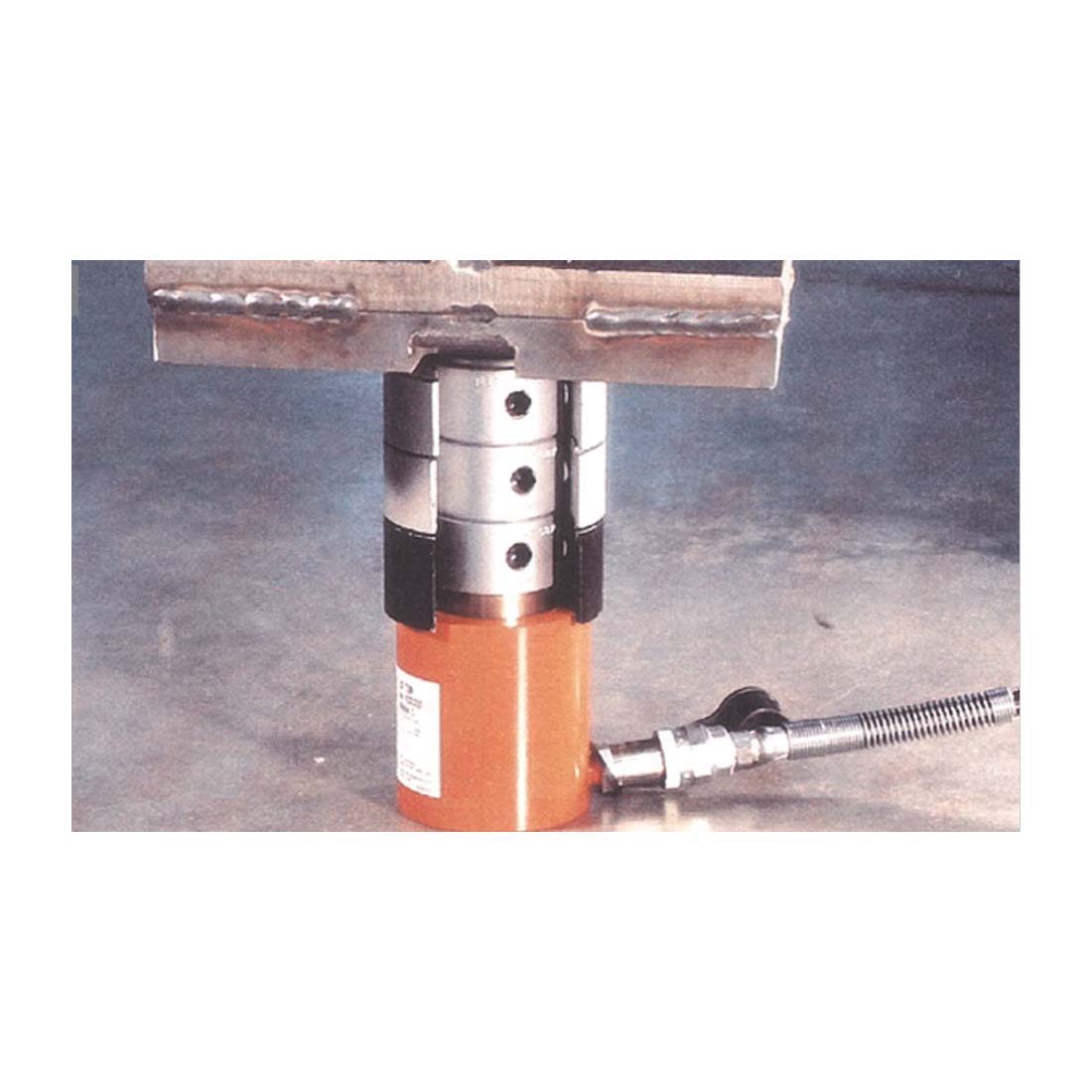

Ideal for confined areas from 3-1/2 in to 11-7/16 in clearance
Power Tech plated piston rods and gland nuts resist scoring and corrosion
Heavy duty return spring (except for double-acting models) provides fast piston return and low collapsed height
Coupler on 10 thru 50 ton models is angled upward 5 deg for added clearance
Grooved piston top keeps load from sliding
Cylinders can be dead-ended at full capacity
