PFERD PFE 23321

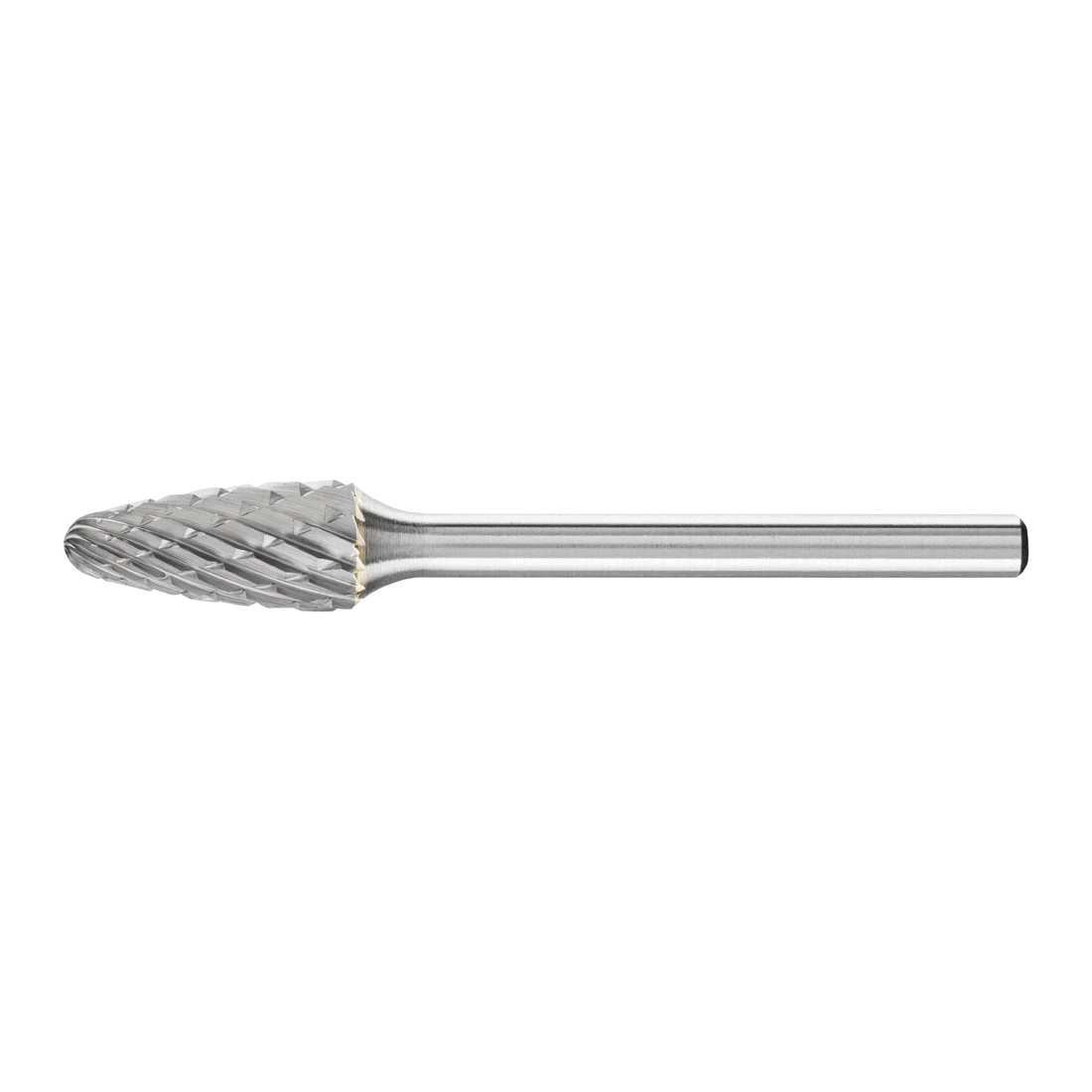

PFERD 21823321 Universal Line Premium Grade Carbide Burr, Radius End, Tree Radius (Shape SF) Head, 1/4 in Dia Head, 1/2 in L of Cut, 1-11/16 in OAL, Single Cut

Invoice description: Sf-51-sc 1/4" Tree 1/8 S K Bp

UPC: 097758233217
UNSPSC: 23251706
Manufacturer PN: 21823321
$15.45 EA
Factory Order
Estimated to ship in 8 days
QTY:


PFERD Carbide Burr, Premium Grade, Series: Universal Line, Radius, 1/4 in Head Dia, 1/2 in Length of Cut, 1-11/16 in Overall Length, Tree Radius (Shape SF) Head Shape, Single Cut Type, 1/8 in Shank Dia, 1-3/16 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 48000 rpm Maximum, Applicable Materials: Cast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel, SF-51 Industry Specification

  • Features

  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating
  • Long service life
  • Reduced wear on the power tool due to impact-free work without chatter marks, due to the high concentricity
  • High surface quality

Specifications

ApplicationDeburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams
Applicable MaterialsCast Iron, Cast Steel, Non-Ferrous Metals, Steel and Stainless Steel
Cut TypeSingle
End TypeRadius
Head CoatingBright
Head Diameter1/4 in
Head MaterialTungsten Carbide
Head ShapeTree Radius (Shape SF)
Industry SpecificationSF-51
Length of Cut1/2 in
Maximum Speed48000 rpm
Overall Length1-11/16 in
SeriesUniversal Line
Shank Diameter1/8 in
Shank Length1-3/16 in
TypePremium Grade

Additional Information

Standards/ApprovalPROP65: California to cause cancer. www.P65Warnings.ca.gov/product
Country of OriginDE
