PFERD PFE 24585

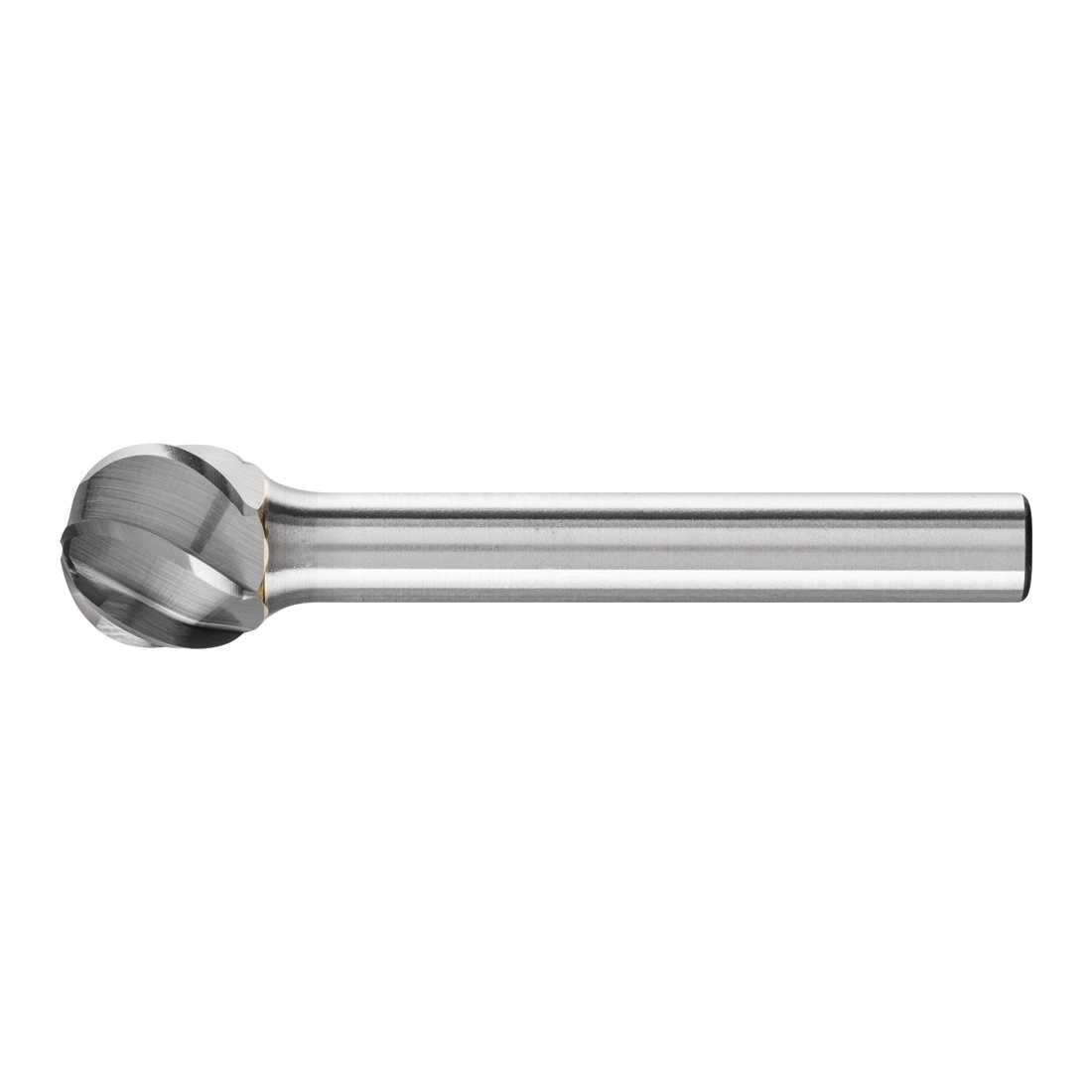

PFERD 24585 High Performance Line Premium Grade Carbide Burr, Ball (Shape SD) Head, 1/2 in Dia Head, 7/16 in L of Cut, 2-3/16 in OAL, Aluminum Cut

UPC: 097758245852
UNSPSC: 23251706
Manufacturer PN: 24585
$18.26 EA
In stock (7)
QTY:


PFERD Carbide Burr, Premium Grade, Series: High Performance Line, 1/2 in Head Dia, 7/16 in Length of Cut, 2-3/16 in Overall Length, Ball (Shape SD) Head Shape, Aluminum Cut Type, 1/4 in Shank Dia, 1-3/4 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 30000 rpm Maximum, Applicable Materials: Aluminum, Non-Ferrous Metals and Plastics, SD-5 Industry Specification

  • Features

  • Large chip volume and high stock removal performance
  • Reduced material adhesion
  • Long service life and smooth running
  • Can be used with peripheral speeds of up to 3600 sfpm

Specifications

ApplicationDeburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams
Type Premium Grade
Series High Performance Line
Head Diameter 1/2 in
Length of Cut 7/16 in
Overall Length 2-3/16 in
Head Shape Ball (Shape SD)
Cut Type Aluminum
Shank Diameter 1/4 in
Shank Length 1-3/4 in
