PFERD PFE 24705

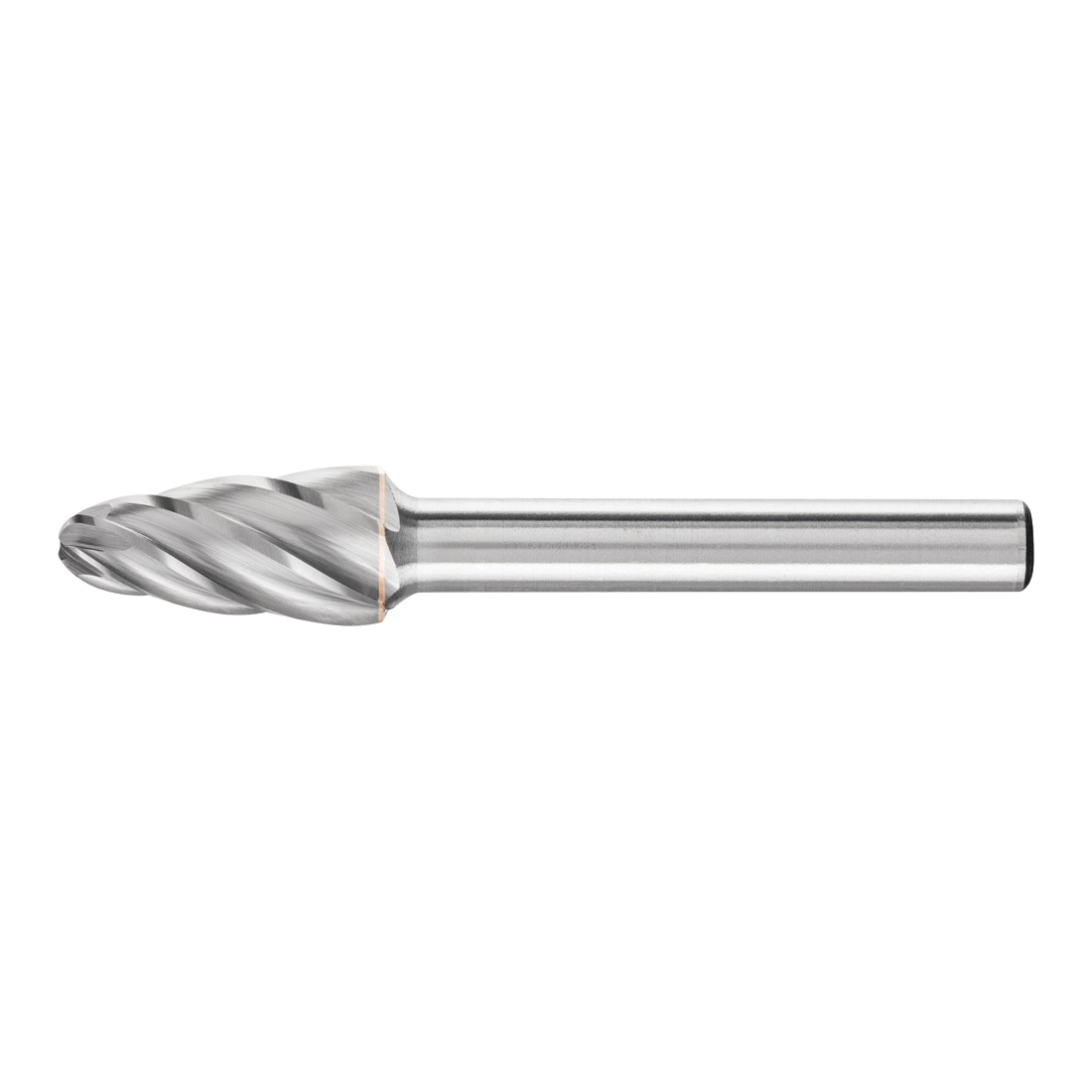

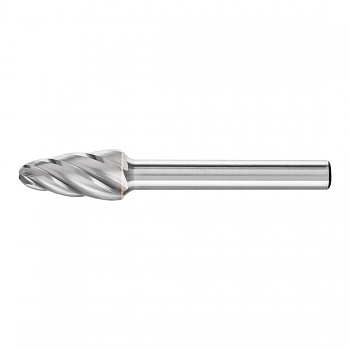

PFERD 24705 High Performance Line Premium Grade Carbide Burr, Radius End, Tree Radius (Shape SF) Head, 3/8 in Dia Head, 3/4 in L of Cut, 2-1/2 in OAL, Aluminum Cut

UPC: 097758247054
UNSPSC: 23251706
Manufacturer PN: 24705
$25.56 EA
In stock (15)
QTY:


PFERD Carbide Burr, Premium Grade, Series: High Performance Line, Radius, 3/8 in Head Dia, 3/4 in Length of Cut, 2-1/2 in Overall Length, Tree Radius (Shape SF) Head Shape, Aluminum Cut Type, 1/4 in Shank Dia, 1-3/4 in Shank Length, Tungsten Carbide Head, Bright Head Coating, 35000 rpm Maximum, Applicable Materials: Aluminum, Non-Ferrous Metals and Plastics, SF-3 Industry Specification

  • Features

  • Large chip volume and high stock removal performance
  • Reduced material adhesion
  • Long service life and smooth running
  • Can be used with peripheral speeds of up to 3600 sfpm

Specifications

ApplicationDeburring, Leveling, Milling Out, Cutting Out Holes, Surface Work and Work on Weld Seams
Type Premium Grade
Series High Performance Line
End Type Radius
Head Diameter 3/8 in
Length of Cut 3/4 in
Overall Length 2-1/2 in
Head Shape Tree Radius (Shape SF)
Cut Type Aluminum
Shank Diameter 1/4 in
Shank Length 1-3/4 in
