Sandvik Coromant SANC 6612368

Sandvik Coromant 6612368 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-WM 4315, CCMT Insert, Material Grade: K, P, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

UNSPSC:
Manufacturer PN: 6612368
$22.87 EACH
Factory Order
Estimated to ship in 14 days
QTY:

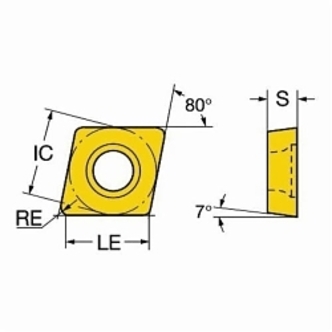

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)1 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: CCMT 3(2.5)1-WM 4315, ISO Code: CCMT 09 T3 04-WM 4315, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish
  • Wiper geometries available for high feeds and high quality surface finish
ApplicationMedium Machining Applications
